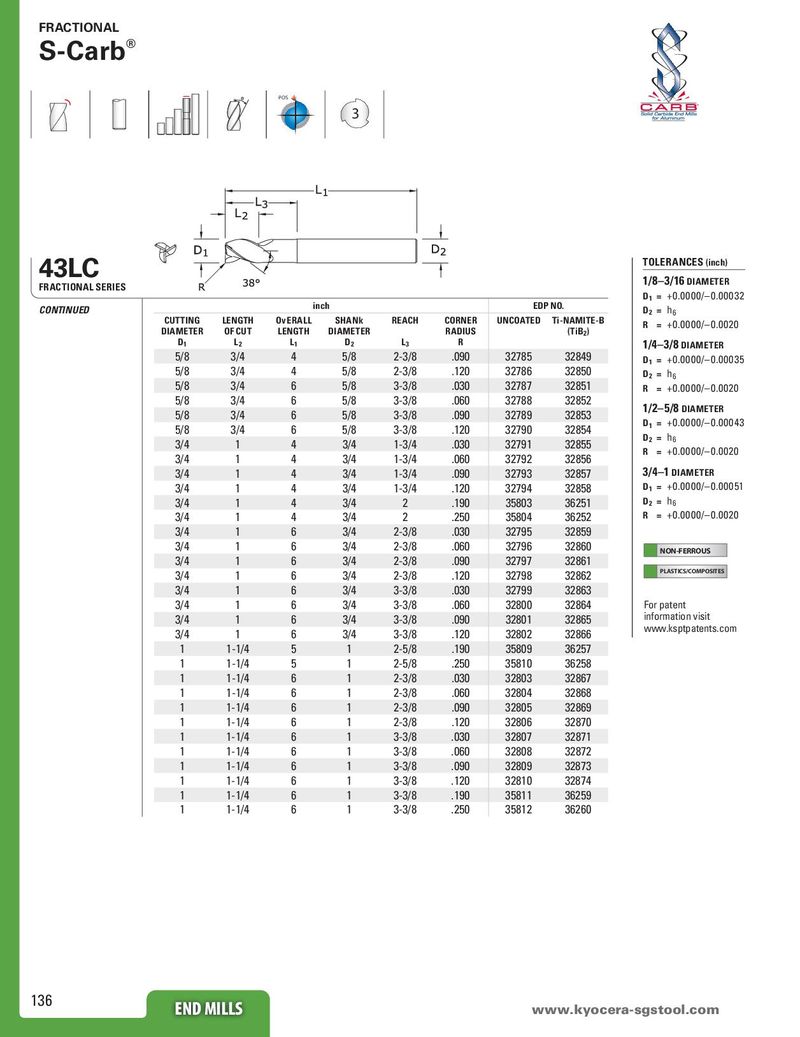

POS 3 ®
43LC TOLERANCES (inch) 1/8–3/16 DIAMETER FRACTIONAL SERIES D = +0.0000/–0.00032
| CONTINUED | in | ch | ED | P NO. | ||||
| CUTTING DIAMETER | LENGTH OF CUT | OvERALL LENGTH | SHANk DIAMETER | REACH | CORNER RADIUS | UNCOATED | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | L3 | R | |||
| 5/8 | 3/4 | 4 | 5/8 | 2-3/8 | .090 | 32785 | 32849 | |
| 5/8 | 3/4 | 4 | 5/8 | 2-3/8 | .120 | 32786 | 32850 | |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | .030 | 32787 | 32851 | |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | .060 | 32788 | 32852 | |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | .090 | 32789 | 32853 | |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | .120 | 32790 | 32854 | |
| 3/4 | 1 | 4 | 3/4 | 1-3/4 | .030 | 32791 | 32855 | |
| 3/4 | 1 | 4 | 3/4 | 1-3/4 | .060 | 32792 | 32856 | |
| 3/4 | 1 | 4 | 3/4 | 1-3/4 | .090 | 32793 | 32857 | |
| 3/4 | 1 | 4 | 3/4 | 1-3/4 | .120 | 32794 | 32858 | |
| 3/4 | 1 | 4 | 3/4 | 2 | .190 | 35803 | 36251 | |
| 3/4 | 1 | 4 | 3/4 | 2 | .250 | 35804 | 36252 | |
| 3/4 | 1 | 6 | 3/4 | 2-3/8 | .030 | 32795 | 32859 | |
| 3/4 | 1 | 6 | 3/4 | 2-3/8 | .060 | 32796 | 32860 | |
| 3/4 | 1 | 6 | 3/4 | 2-3/8 | .090 | 32797 | 32861 | |
| 3/4 | 1 | 6 | 3/4 | 2-3/8 | .120 | 32798 | 32862 | |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | .030 | 32799 | 32863 | |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | .060 | 32800 | 32864 | |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | .090 | 32801 | 32865 | |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | .120 | 32802 | 32866 | |
| 1 | 1-1/4 | 5 | 1 | 2-5/8 | .190 | 35809 | 36257 | |
| 1 | 1-1/4 | 5 | 1 | 2-5/8 | .250 | 35810 | 36258 | |
| 1 | 1-1/4 | 6 | 1 | 2-3/8 | .030 | 32803 | 32867 | |
| 1 | 1-1/4 | 6 | 1 | 2-3/8 | .060 | 32804 | 32868 | |
| 1 | 1-1/4 | 6 | 1 | 2-3/8 | .090 | 32805 | 32869 | |
| 1 | 1-1/4 | 6 | 1 | 2-3/8 | .120 | 32806 | 32870 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .030 | 32807 | 32871 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .060 | 32808 | 32872 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .090 | 32809 | 32873 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .120 | 32810 | 32874 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .190 | 35811 | 36259 | |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | .250 | 35812 | 36260 |
1 2 6
D1 = 2 6 R = D = +0.0000/–0.00043 D = h
1 2 6
NON-FERROUS
