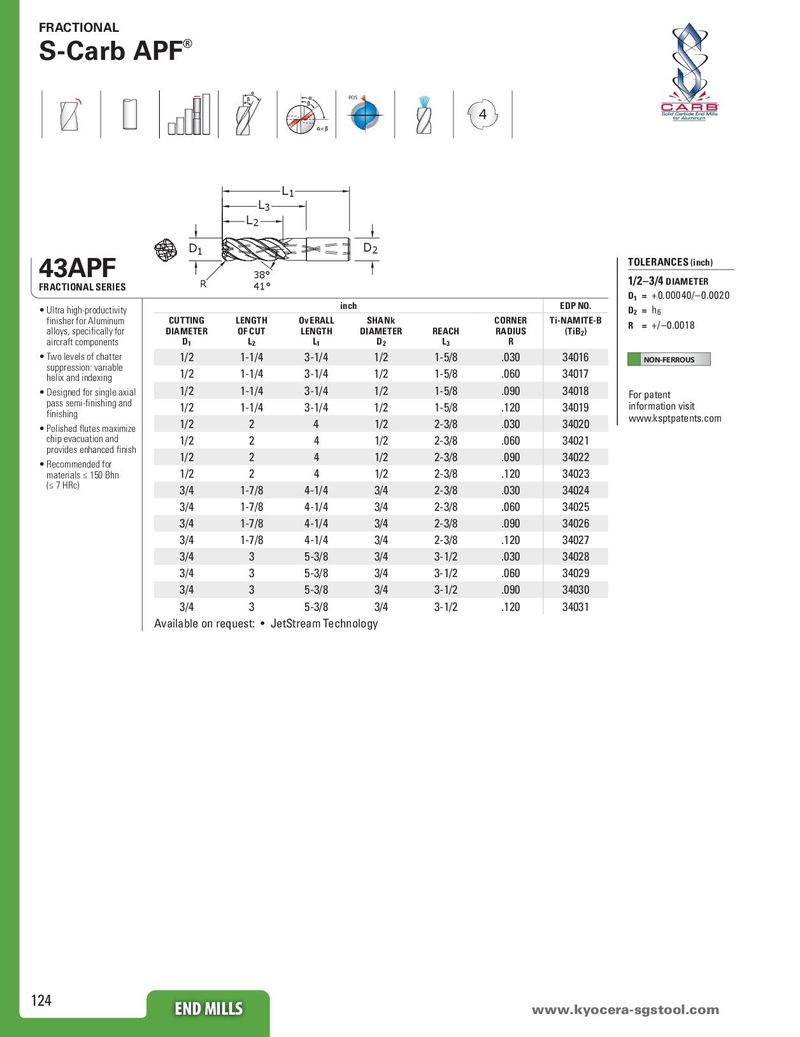

POS 4 ®
| L L2 L3 | 1 | |||||
| 1 D | 2 D | |||||
| R | 38° 41° | |||||
| in | ch | EDP NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | REACH L3 | CORNER RADIUS R | Ti-NAMITE-B (TiB2) |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | 1-5/8 | .030 | 34016 |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | 1-5/8 | .060 | 34017 |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | 1-5/8 | .090 | 34018 |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | 1-5/8 | .120 | 34019 |
| 1/2 | 2 | 4 | 1/2 | 2-3/8 | .030 | 34020 |
| 1/2 | 2 | 4 | 1/2 | 2-3/8 | .060 | 34021 |
| 1/2 | 2 | 4 | 1/2 | 2-3/8 | .090 | 34022 |
| 1/2 | 2 | 4 | 1/2 | 2-3/8 | .120 | 34023 |
| 3/4 | 1-7/8 | 4-1/4 | 3/4 | 2-3/8 | .030 | 34024 |
| 3/4 | 1-7/8 | 4-1/4 | 3/4 | 2-3/8 | .060 | 34025 |
| 3/4 | 1-7/8 | 4-1/4 | 3/4 | 2-3/8 | .090 | 34026 |
| 3/4 | 1-7/8 | 4-1/4 | 3/4 | 2-3/8 | .120 | 34027 |
| 3/4 | 3 | 5-3/8 | 3/4 | 3-1/2 | .030 | 34028 |
| 3/4 | 3 | 5-3/8 | 3/4 | 3-1/2 | .060 | 34029 |
| 3/4 | 3 | 5-3/8 | 3/4 | 3-1/2 | .090 | 34030 |
| 3/4 | 3 | 5-3/8 | 3/4 | 3-1/2 | .120 | 34031 |
TOLERANCES (inch) D = +0.00040/–0.0020 1 2 6
- Polished flutes maximize
- Recommended for
