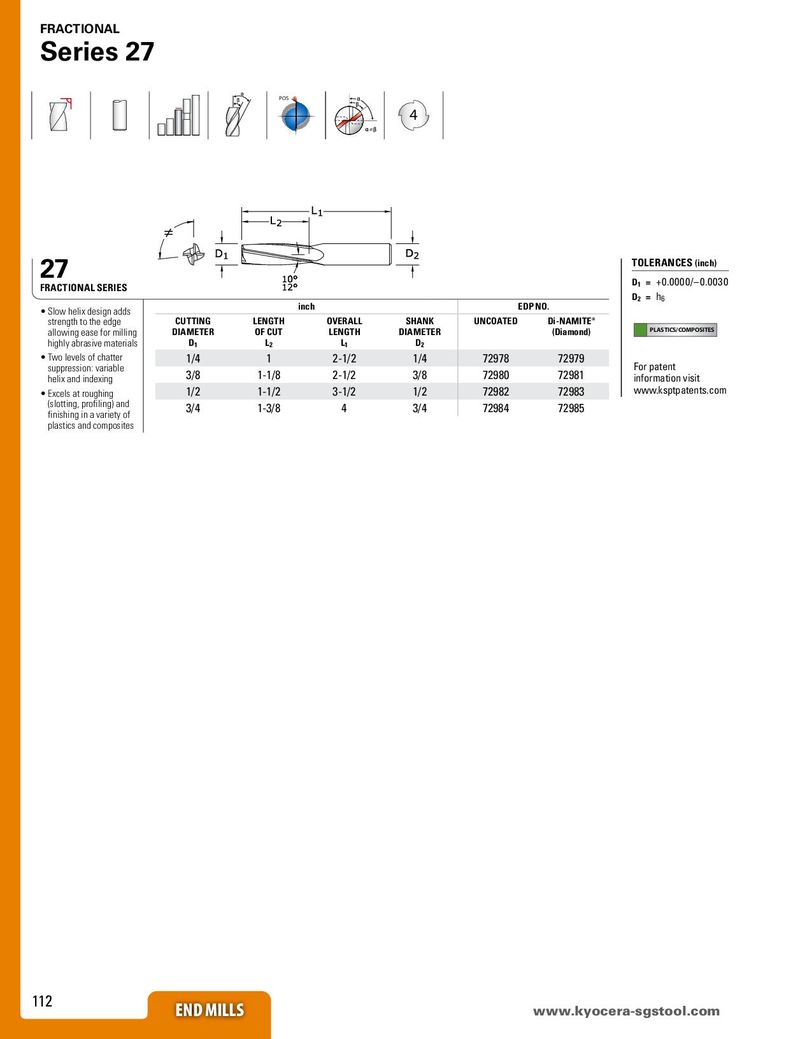

FRACTIONAL Series 27 POS 4 ≠ 27 TOLERANCES (inch) D1 = +0.0000/–0.0030 FRACTIONAL SERIES D2 = h6 • Slow helix design adds inch EDP NO. strength to the edge CUTTING LENGTH OVERALL SHANK UNCOATED Di-NAMITE® allowing ease for milling DIAMETER OF CUT LENGTH DIAMETER (Diamond) PLASTICS/COMPOSITES highly abrasive materials D1 L2 L1 D2 • Two levels of chatter 1/4 1 2-1/2 1/4 72978 72979 suppression: variable For patent helix and indexing 3/8 1-1/8 2-1/2 3/8 72980 72981 information visit • Excels at roughing 1/2 1-1/2 3-1/2 1/2 72982 72983 www.ksptpatents.com (slotting, profiling) and 3/4 1-3/8 4 3/4 72984 72985 finishing in a variety of plastics and composites 112 END MILLS END MILLS www.kyocera-sgstool.com
