Series 57M			Ae	Ap Ae	Vc			Diame (m	ter (D1) m)
Metric	Hardness		Ae x D1	Ap x D1	(m/min)		6	8	10	12	16	20
		Slot			66	RPM	3499	2624	2099	1749	1312	1050
			1	≤ 0.3	(53-79)	Fz	0.032	0.048	0.064	0.079	0.094	0.109
						Feed (mm/min)	672	756	806	829	740	686
TOOL STEELS MOLD AND DIE STEEL	≤ 420 Bhn	Profile			81	RPM	4294	3220	2576	2147	1610	1288
300M, 4340, 52100, HP-9-4-20, M50, A2,	or ≤ 45 HR		≤ 0.1	≤ 1.5	(65-97)	Fz	0.046	0.066	0.089	0.112	0.132	0.152
D2, H13, L2, M2, P20, S7, T15, W2	c					Feed (mm/min)	1185	1275	1376	1443	1275	1175
		HSM			171	RPM	9064	6798	5439	4532	3399	2719
			≤ 0.04	≤ 1.5	(137-205)	Fz	0.056	0.084	0.112	0.140	0.170	0.200
						Feed (mm/min)	3046	3426	3655	3807	3467	3263
		Slot			37	RPM	1961	1471	1177	981	735	588
			1	≤ 0.3	(30-44)	Fz	0.025	0.038	0.051	0.064	0.077	0.090
						Feed (mm/min)	294	335	360	377	340	318
TOOL STEELS MOLD AND DIE STEEL	≤ 560 Bhn	Profile			46	RPM	2438	1829	1463	1219	914	732
H 300M, 4340, 52100, HP-9-4-20, M50, A2,	or		≤ 0.1	≤ 1.5		Fz	0.036	0.053	0.071	0.089	0.107	0.125
D2, H13, L2, M2, P20, S7, T15, W2	≤ 55 HRc				(37-55)	Feed (mm/min)	527	582	623	651	587	549
		HSM			149	RPM	7898	5924	4739	3949	2962	2369
			≤ 0.04	≤ 1.5	(119-179)	Fz	0.046	0.066	0.089	0.112	0.135	0.158
						Feed (mm/min)	2180	2346	2531	2654	2399	2246
		Slot			20	RPM	1060	795	636	530	398	318
			1	≤ 0.3	(1624)	Fz	0.020	0.028	0.038	0.048	0.058	0.068
					-	Feed (mm/min)	127	134	145	153	138	130
TOOL STEELS MOLD AND DIE STEEL	740 Bh	Pfil			24	RPM	1272	954	763	636	477	382
300M, 4340, 52100, HP-9-4-20, M50, A2,	≤ n or	roe	≤ 0.1	≤ 1.5		Fz	0.028	0.041	0.053	0.066	0.078	0.090
D2, H13, L2, M2, P20, S7, T15, W2	≤ 65 HRc				(19-29)	Feed (mm/min)	214	235	243	252	223	206
		HSM			76	RPM	4029	3021	2417	2014	1511	1209
			≤ 0.04	≤ 1.5	(61-91)	Fz	0.033	0.048	0.064	0.079	0.094	0.109
						Feed (mm/min)	798	870	928	955	852	790

Bhn (Brinell) HRc (Rockwell C) HSM (High Speed Machining) rpm = (Vc x 1000) / (D x 3.14) 1 mm/min = Fz x 6 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x D maximum) 1 refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)

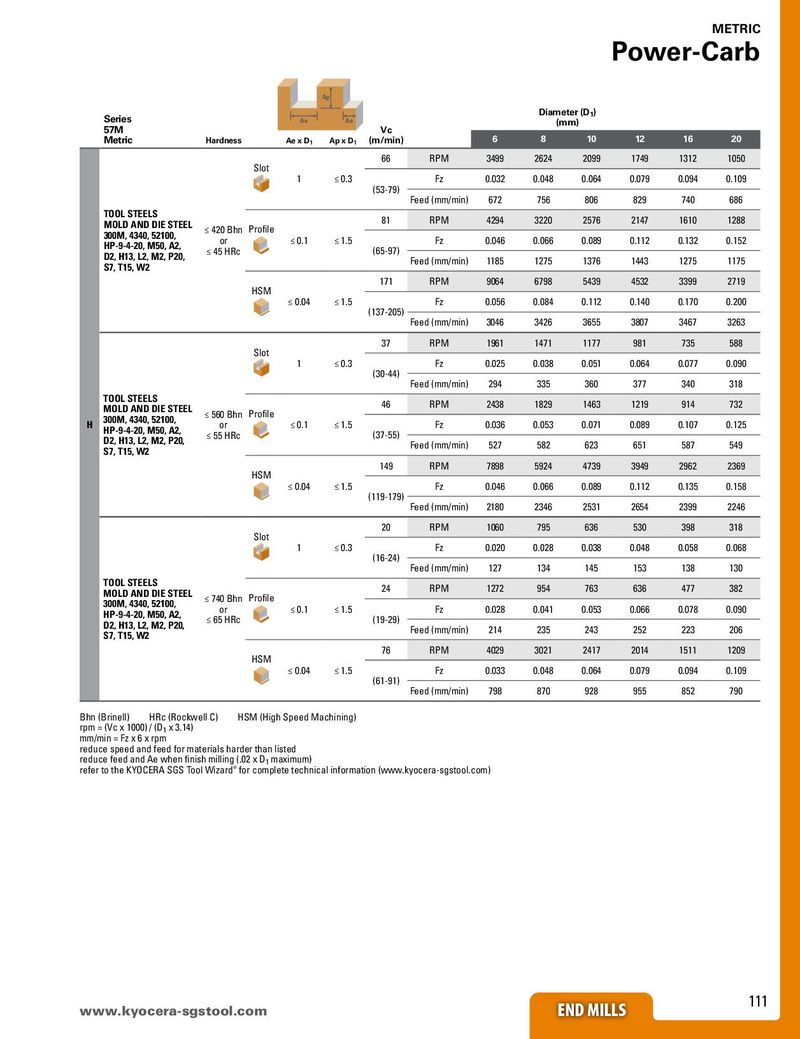

Общий каталог SGS 2018 - страница 111
