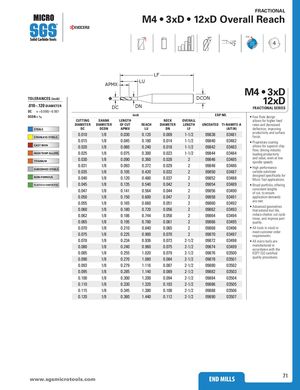

FRACTIONAL M4 • 3xD • 12xD Overall Reach POS 30° 15° 4 LF LU APMX M4 • 3xD TOLERANCES (inch) .010–.120 DIAMETER DC DN DCON 12xD FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h 6 inch EDP NO. • Four flute design CUTTING SHANK LENGTH NECK OVERALL allows for higher feed DIAMETER DIAMETER OF CUT REACH DIAMETER LENGTH UNCOATED TI-NAMITE-A rates and decreased STEELS DC DCON APMX LU DN LF (AlTiN) deflection, improving productivity and surface 0.010 1/8 0.030 0.120 0.009 1-1/2 09838 03481 finish. STAINLESS STEELS 0.015 1/8 0.045 0.180 0.014 1-1/2 09840 03482 • Proprietary coating CAST IRON allows for superior chip 0.020 1/8 0.060 0.240 0.018 1-1/2 09842 03483 flow, driving industry HIGH TEMP ALLOYS 0.025 1/8 0.075 0.300 0.023 1-1/2 09844 03484 leading productivity 0.030 1/8 0.090 0.360 0.028 2 09846 03485 and value, even at low TITANIUM spindle speeds. 0.031 1/8 0.093 0.372 0.029 2 09848 03486 • High performance HARDENED STEELS 0.035 1/8 0.105 0.420 0.032 2 09850 03487 carbide substrate designed specifically for NON-FERROUS 0.040 1/8 0.120 0.480 0.037 2 09852 03488 Micro Tool applications. PLASTICS/COMPOSITES 0.045 1/8 0.135 0.540 0.042 2 09854 03489 • Broad portfolio, offering consistent lengths 0.047 1/8 0.141 0.564 0.044 2 09856 03490 of cut, to ensure 0.050 1/8 0.150 0.600 0.047 2 09858 03491 application demands are met. 0.055 1/8 0.165 0.660 0.051 2 09860 03492 • Advanced geometries 0.060 1/8 0.180 0.720 0.056 2 09862 03493 that extend tool life, 0.062 1/8 0.186 0.744 0.058 2 09864 03494 reduce chatter, cut cycle times, and improve part 0.065 1/8 0.195 0.780 0.061 2 09866 03495 quality. 0.070 1/8 0.210 0.840 0.065 2 09868 03496 • All tools in stock to meet customer order 0.075 1/8 0.225 0.900 0.070 2 09870 03497 requirements. 0.078 1/8 0.234 0.936 0.073 2-1/2 09872 03498 • All micro tools are 0.080 1/8 0.240 0.960 0.075 2-1/2 09874 03499 manufactured in accordance with the 0.085 1/8 0.255 1.020 0.079 2-1/2 09876 03500 KSPT ISO certified quality procedures. 0.090 1/8 0.270 1.080 0.084 2-1/2 09878 03501 0.093 1/8 0.279 1.116 0.087 2-1/2 09880 03502 0.095 1/8 0.285 1.140 0.089 2-1/2 09882 03503 0.100 1/8 0.300 1.200 0.094 2-1/2 09884 03504 0.110 1/8 0.330 1.320 0.103 2-1/2 09886 03505 0.115 1/8 0.345 1.380 0.108 2-1/2 09888 03506 0.120 1/8 0.360 1.440 0.112 2-1/2 09890 03507 71 END MILLS www.sgsmicrotools.com END MILLS
