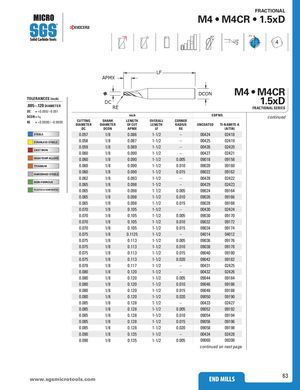

30° POS 15° 4
| APMX | LF | DCON | M | 4 • M4CR . | ||||
| TOLERANCES(inch) | . | |||||||
| DC | .x | |||||||
| .005–.120DIAMETER DC =+0000/–0001 | RE | . FRACTIONAL SERIES | ||||||
| .. DCON =h6 | inch | EDP | NO. | continued | ||||
| RE =+0.0000 / –0.0005 | CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | CORNER RADIUS RE | UNCOATED | TI-NAMITE-A (AlTiN) | |
| STEELS | 0.057 | 1/8 | 0.086 | 1-1/2 | – | 00424 | 02418 | |
| STAINLESS STEELS | 0.058 | 1/8 | 0.087 | 1-1/2 | – | 00425 | 02419 | |
| 0.059 | 1/8 | 0.089 | 1-1/2 | – | 00426 | 02420 | ||
| CAST IRON | 0.060 | 1/8 | 0.090 | 1-1/2 | – | 00427 | 02421 | |
| HIGH TEMP ALLOYS | 0.060 | 1/8 | 0.090 | 1-1/2 | 0.005 | 09018 | 09158 | |
| TITANIUM | 0.060 | 1/8 | 0.090 | 1-1/2 | 0.010 | 09020 | 09160 | |
| HARDENED STEELS | 0.060 | 1/8 | 0.090 | 1-1/2 | 0.015 | 09022 | 09162 | |
| 0.062 | 1/8 | 0.093 | 1-1/2 | – | 00428 | 02422 | ||
| NON-FERROUS | 0.065 | 1/8 | 0.098 | 1-1/2 | – | 00429 | 02423 | |
| PLASTICS/COMPOSITES | 0.065 | 1/8 | 0.098 | 1-1/2 | 0.005 | 09024 | 09164 | |
| 0.065 | 1/8 | 0.098 | 1-1/2 | 0.010 | 09026 | 09166 | ||
| 0.065 | 1/8 | 0.098 | 1-1/2 | 0.015 | 09028 | 09168 | ||
| 0.070 | 1/8 | 0.105 | 1-1/2 | – | 00430 | 02424 | ||
| 0.070 | 1/8 | 0.105 | 1-1/2 | 0.005 | 09030 | 09170 | ||
| 0.070 | 1/8 | 0.105 | 1-1/2 | 0.010 | 09032 | 09172 | ||
| 0.070 | 1/8 | 0.105 | 1-1/2 | 0.015 | 09034 | 09174 | ||
| 0.075 | 1/8 | 0.1125 | 1-1/2 | – | 04014 | 04012 | ||
| 0.075 | 1/8 | 0.113 | 1-1/2 | 0.005 | 09036 | 09176 | ||
| 0.075 | 1/8 | 0.113 | 1-1/2 | 0.010 | 09038 | 09178 | ||
| 0.075 | 1/8 | 0.113 | 1-1/2 | 0.015 | 09040 | 09180 | ||
| 0.075 | 1/8 | 0.113 | 1-1/2 | 0.020 | 09042 | 09182 | ||
| 0.078 | 1/8 | 0.117 | 1-1/2 | – | 00431 | 02425 | ||
| 0.080 | 1/8 | 0.120 | 1-1/2 | – | 00432 | 02426 | ||
| 0.080 | 1/8 | 0.120 | 1-1/2 | 0.005 | 09044 | 09184 | ||
| 0.080 | 1/8 | 0.120 | 1-1/2 | 0.010 | 09046 | 09186 | ||
| 0.080 | 1/8 | 0.120 | 1-1/2 | 0.015 | 09048 | 09188 | ||
| 0.080 | 1/8 | 0.120 | 1-1/2 | 0.020 | 09050 | 09190 | ||
| 0.085 | 1/8 | 0.128 | 1-1/2 | – | 00433 | 02427 | ||
| 0.085 | 1/8 | 0.128 | 1-1/2 | 0.005 | 09052 | 09192 | ||
| 0.085 | 1/8 | 0.128 | 1-1/2 | 0.010 | 09054 | 09194 | ||
| 0.085 | 1/8 | 0.128 | 1-1/2 | 0.015 | 09056 | 09196 | ||
| 0.085 | 1/8 | 0.128 | 1-1/2 | 0.020 | 09058 | 09198 | ||
| 0.090 | 1/8 | 0.135 | 1-1/2 | – | 00434 | 02428 | ||
| 0.090 | 1/8 | 0.135 | 1-1/2 | 0.005 | 09060 | 09200 |
continued on next page
