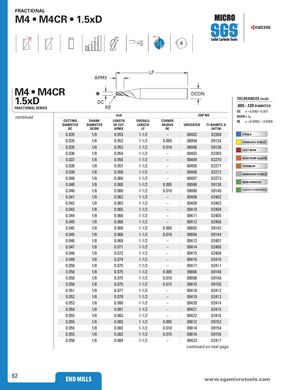

Каталог SGS микро инструмент 2021 - страница 62
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
30° POS 15° 4
M4 • M4CR
1 .5xD
FRACTIONAL SERIES
APMX
DC RE
LF DCON
TOLERANCES (inch) .005–.120 DIAMETER DC = +0.000/–0.001
| continued | CUTTING DIAMETER DC | SHANK DIAMETER DCON | inch LENGTH OF CUT APMX | OVERALL LENGTH LF | CORNER RADIUS RE | ED UNCOATED | P NO. TI-NAMITE-A (AlTiN) | DCON =h6 RE =+0.0000 / –0.0 |
| 0.035 | 1/8 | 0.053 | 1-1/2 | – | 00402 | 02268 | STEELS | |
| 0.035 | 1/8 | 0.053 | 1-1/2 | 0.005 | 08994 | 09134 | STAINLESS STEELS | |
| 0.035 | 1/8 | 0.053 | 1-1/2 | 0.010 | 08996 | 09136 | CAST IRON | |
| 0.036 | 1/8 | 0.054 | 1-1/2 | – | 00403 | 02269 | ||
| 0.037 | 1/8 | 0.056 | 1-1/2 | – | 00404 | 02270 | HIGH TEMP ALLOYS | |
| 0.038 | 1/8 | 0.057 | 1-1/2 | – | 00405 | 02271 | TITANIUM | |
| 0.039 | 1/8 | 0.059 | 1-1/2 | – | 00406 | 02272 | HARDENED STEELS | |
| 0.040 | 1/8 | 0.060 | 1-1/2 | – | 00407 | 02273 | ||
| 0.040 | 1/8 | 0.060 | 1-1/2 | 0.005 | 08998 | 09138 | NON-FERROUS | |
| 0.040 | 1/8 | 0.060 | 1-1/2 | 0.010 | 09000 | 09140 | PLASTICS/COMPOSITES | |
| 0.041 | 1/8 | 0.062 | 1-1/2 | – | 00408 | 02402 | ||
| 0.042 | 1/8 | 0.063 | 1-1/2 | – | 00409 | 02403 | ||
| 0.043 | 1/8 | 0.065 | 1-1/2 | – | 00410 | 02404 | ||
| 0.044 | 1/8 | 0.066 | 1-1/2 | – | 00411 | 02405 | ||
| 0.045 | 1/8 | 0.068 | 1-1/2 | – | 00412 | 02406 | ||
| 0.045 | 1/8 | 0.068 | 1-1/2 | 0.005 | 09002 | 09142 | ||
| 0.045 | 1/8 | 0.068 | 1-1/2 | 0.010 | 09004 | 09144 | ||
| 0.046 | 1/8 | 0.069 | 1-1/2 | – | 00413 | 02407 | ||
| 0.047 | 1/8 | 0.071 | 1-1/2 | – | 00414 | 02408 | ||
| 0.048 | 1/8 | 0.072 | 1-1/2 | – | 00415 | 02409 | ||
| 0.049 | 1/8 | 0.074 | 1-1/2 | – | 00416 | 02410 | ||
| 0.050 | 1/8 | 0.075 | 1-1/2 | – | 00417 | 02411 | ||
| 0.050 | 1/8 | 0.075 | 1-1/2 | 0.005 | 09006 | 09146 | ||
| 0.050 | 1/8 | 0.075 | 1-1/2 | 0.010 | 09008 | 09148 | ||
| 0.050 | 1/8 | 0.075 | 1-1/2 | 0.015 | 09010 | 09150 | ||
| 0.051 | 1/8 | 0.077 | 1-1/2 | – | 00418 | 02412 | ||
| 0.052 | 1/8 | 0.078 | 1-1/2 | – | 00419 | 02413 | ||
| 0.053 | 1/8 | 0.080 | 1-1/2 | – | 00420 | 02414 | ||
| 0.054 | 1/8 | 0.081 | 1-1/2 | – | 00421 | 02415 | ||
| 0.055 | 1/8 | 0.083 | 1-1/2 | – | 00422 | 02416 | ||
| 0.055 | 1/8 | 0.083 | 1-1/2 | 0.005 | 09012 | 09152 | ||
| 0.055 | 1/8 | 0.083 | 1-1/2 | 0.010 | 09014 | 09154 | ||
| 0.055 | 1/8 | 0.083 | 1-1/2 | 0.015 | 09016 | 09156 | ||
| 0.056 | 1/8 | 0.084 | 1-1/2 | – | 00423 | 02417 | ||
| continue | d on next page |
