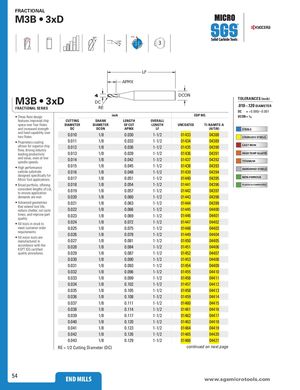

Каталог SGS микро инструмент 2021 - страница 54
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
30° POS 15° 3
| M3B • 3x | D | DC | APMX | LF | DCON | TOLERANCES(inc 010–120DIAME | |
| FRACTIONAL SERIES | RE | .. DC =+0000/–00 | |||||
| • Three flute desin | in | ch | ED | P NO. | .. DCON =h6 | ||
| g features improved chip space over four flutes | CUTTING DIAMETER | SHANK DIAMETER | LENGTH OF CUT | OVERALL LENGTH | UNCOATED | TI-NAMITE-A | |
| and increased strength | DC | DCON | APMX | LF | (AlTiN) | STEELS | |
| and feed capability over two flutes. | 0.010 | 1/8 | 0.030 | 1-1/2 | 01433 | 04388 | STAINLESS STEELS |
| • Proprietary coating | 0.011 | 1/8 | 0.033 | 1-1/2 | 01434 | 04389 | |
| allows for superior chip flow drivin industr | 0.012 | 1/8 | 0.036 | 1-1/2 | 01435 | 04390 | CAST IRON |
| , g y leading productivity | 0.013 | 1/8 | 0.039 | 1-1/2 | 01436 | 04391 | HIGH TEMP ALLOYS |
| and value, even at low spindle speeds. | 0.014 | 1/8 | 0.042 | 1-1/2 | 01437 | 04392 | TITANIUM |
| • High performance | 0.015 | 1/8 | 0.045 | 1-1/2 | 01438 | 04393 | HARDENED STEELS |
| carbide substrate | 0.016 | 1/8 | 0.048 | 1-1/2 | 01439 | 04394 | |
| designed specifically for Micro Tool applications. | 0.017 | 1/8 | 0.051 | 1-1/2 | 01440 | 04395 | NON-FERROUS |
| • Broad portfolio, offering | 0.018 | 1/8 | 0.054 | 1-1/2 | 01441 | 04396 | PLASTICS/COMPOSITES |
| consistent lengths of cut, to ensure application | 0.019 | 1/8 | 0.057 | 1-1/2 | 01442 | 04397 | |
| demands are met. | 0.020 | 1/8 | 0.060 | 1-1/2 | 01443 | 04398 | |
| • Advanced geometries | 0.021 | 1/8 | 0.063 | 1-1/2 | 01444 | 04399 | |
| that extend tool life, reduce chatter, cut cycle | 0.022 | 1/8 | 0.066 | 1-1/2 | 01445 | 04400 | |
| times, and improve part alit | 0.023 | 1/8 | 0.069 | 1-1/2 | 01446 | 04401 | |
| quy. • All tools in stock to | 0.024 | 1/8 | 0.072 | 1-1/2 | 01447 | 04402 | |
| meet customer order | 0.025 | 1/8 | 0.075 | 1-1/2 | 01448 | 04403 | |
| requirements. • All i tl | 0.026 | 1/8 | 0.078 | 1-1/2 | 01449 | 04404 | |
| mcro oos are manufactured in | 0.027 | 1/8 | 0.081 | 1-1/2 | 01450 | 04405 | |
| accordance with the KSPT ISO certified | 0.028 | 1/8 | 0.084 | 1-1/2 | 01451 | 04406 | |
| quality procedures. | 0.029 | 1/8 | 0.087 | 1-1/2 | 01452 | 04407 | |
| 0.030 | 1/8 | 0.090 | 1-1/2 | 01453 | 04408 | ||
| 0.031 | 1/8 | 0.093 | 1-1/2 | 01454 | 04409 | ||
| 0.032 | 1/8 | 0.096 | 1-1/2 | 01455 | 04410 | ||
| 0.033 | 1/8 | 0.099 | 1-1/2 | 01456 | 04411 | ||
| 0.034 | 1/8 | 0.102 | 1-1/2 | 01457 | 04412 | ||
| 0.035 | 1/8 | 0.105 | 1-1/2 | 01458 | 04413 | ||
| 0.036 | 1/8 | 0.108 | 1-1/2 | 01459 | 04414 | ||
| 0.037 | 1/8 | 0.111 | 1-1/2 | 01460 | 04415 | ||
| 0.038 | 1/8 | 0.114 | 1-1/2 | 01461 | 04416 | ||
| 0.039 | 1/8 | 0.117 | 1-1/2 | 01462 | 04417 | ||
| 0.040 | 1/8 | 0.120 | 1-1/2 | 01463 | 04418 | ||
| 0.041 | 1/8 | 0.123 | 1-1/2 | 01464 | 04419 | ||
| 0.042 | 1/8 | 0.126 | 1-1/2 | 01465 | 04420 | ||
| 0.043 | 1/8 | 0.129 | 1-1/2 | 01466 | 04421 |
RE = 1/2 Cutting Diameter (DC) continued on next page
