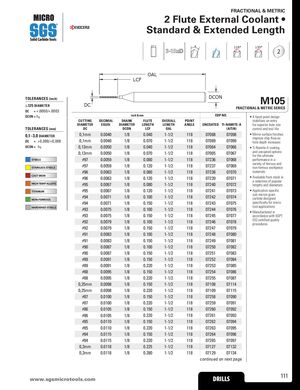

| 118° | 130° 2 | ||||||||
| LCF | OAL | ||||||||
| TOLERANCES(inch) | DCON | M105 | |||||||
| ≤.125DIAMETER | DC | FRAC | TIONAL & METRIC SERIES | ||||||
| DC =+0000/+0003 | |||||||||
| .. DCON =h6 | inch & m | m | EDP | NO. | • 4-facet point design | ||||
| TOLERANCES(mm) | CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED T | I-NAMITE-A (AlTiN) | stabilizes on entry for superior hole size control and tool life |
| 0,1–3,0DIAMETER | 0,1mm | 0.0040 | 1/8 | 0.040 | 1-1/2 | 118 | 07088 | 07098 | • Mirror surface finishes |
| DC = +0,000/+0,008 | 0,1mm | 0.0040 | 1/8 | 0.070 | 1-1/2 | 118 | 07089 | 07099 | improve chip flow as hole depth increases |
| DCON =h6 | 0,13mm | 0.0050 | 1/8 | 0.040 | 1-1/2 | 118 | 07064 | 07066 | • Ti-Namite A coating |
| 0,13mm | 0.0050 | 1/8 | 0.070 | 1-1/2 | 118 | 07065 | 07067 | and uncoated options for the ultimate | |
| STEELS | #97 | 0.0059 | 1/8 | 0.080 | 1-1/2 | 118 | 07236 | 07068 | performance in a |
| STAINLESS STEELS | #97 | 0.0059 | 1/8 | 0.120 | 1-1/2 | 118 | 07237 | 07069 | variety of ferrous and non-ferrous workpiece |
| #96 | 0.0063 | 1/8 | 0.080 | 1-1/2 | 118 | 07238 | 07070 | materials | |
| CAST IRON | #96 | 0.0063 | 1/8 | 0.120 | 1-1/2 | 118 | 07239 | 07071 | • Available from stock in |
| HIGH TEMP ALLOYS | #95 | 0.0067 | 1/8 | 0.080 | 1-1/2 | 118 | 07240 | 07072 | a selection of popular lengths and diameters |
| TITANIUM | #95 | 0.0067 | 1/8 | 0.120 | 1-1/2 | 118 | 07241 | 07073 | • Application specific |
| NON-FERROUS | #94 | 0.0071 | 1/8 | 0.100 | 1-1/2 | 118 | 07242 | 07074 | sub-micron grain carbide designed |
| #94 | 0.0071 | 1/8 | 0.150 | 1-1/2 | 118 | 07243 | 07075 | specifically for micro- | |
| HARDENED STEELS | #93 | 0.0075 | 1/8 | 0.100 | 1-1/2 | 118 | 07244 | 07076 | tool applications • Manufactured in |
| #93 | 0.0075 | 1/8 | 0.150 | 1-1/2 | 118 | 07245 | 07077 | accordance with KSPT | |
| #92 | 0.0079 | 1/8 | 0.100 | 1-1/2 | 118 | 07246 | 07078 | ISO certified quality procedures | |
| #92 | 0.0079 | 1/8 | 0.150 | 1-1/2 | 118 | 07247 | 07079 | ||
| #91 | 0.0083 | 1/8 | 0.100 | 1-1/2 | 118 | 07248 | 07080 | ||
| #91 | 0.0083 | 1/8 | 0.150 | 1-1/2 | 118 | 07249 | 07081 | ||
| #90 | 0.0087 | 1/8 | 0.100 | 1-1/2 | 118 | 07250 | 07082 | ||
| #90 | 0.0087 | 1/8 | 0.150 | 1-1/2 | 118 | 07251 | 07083 | ||
| #89 | 0.0091 | 1/8 | 0.150 | 1-1/2 | 118 | 07252 | 07084 | ||
| #89 | 0.0091 | 1/8 | 0.220 | 1-1/2 | 118 | 07253 | 07085 | ||
| #88 | 0.0095 | 1/8 | 0.150 | 1-1/2 | 118 | 07254 | 07086 | ||
| #88 | 0.0095 | 1/8 | 0.220 | 1-1/2 | 118 | 07255 | 07087 | ||
| 0,25mm | 0.0098 | 1/8 | 0.150 | 1-1/2 | 118 | 07108 | 07114 | ||
| 0,25mm | 0.0098 | 1/8 | 0.220 | 1-1/2 | 118 | 07109 | 07115 | ||
| #87 | 0.0100 | 1/8 | 0.150 | 1-1/2 | 118 | 07258 | 07090 | ||
| #87 | 0.0100 | 1/8 | 0.220 | 1-1/2 | 118 | 07259 | 07091 | ||
| #86 | 0.0105 | 1/8 | 0.150 | 1-1/2 | 118 | 07260 | 07092 | ||
| #86 | 0.0105 | 1/8 | 0.220 | 1-1/2 | 118 | 07261 | 07093 | ||
| #85 | 0.0110 | 1/8 | 0.150 | 1-1/2 | 118 | 07262 | 07094 | ||
| #85 | 0.0110 | 1/8 | 0.220 | 1-1/2 | 118 | 07263 | 07095 | ||
| #84 | 0.0115 | 1/8 | 0.150 | 1-1/2 | 118 | 07264 | 07096 | ||
| #84 | 0.0115 | 1/8 | 0.220 | 1-1/2 | 118 | 07265 | 07097 | ||
| 0,3mm | 0.0118 | 1/8 | 0.225 | 1-1/2 | 118 | 07127 | 07132 | ||
| 0,3mm | 0.0118 | 1/8 | 0.280 | 1-1/2 | 118 | 07129 | 07134 |
