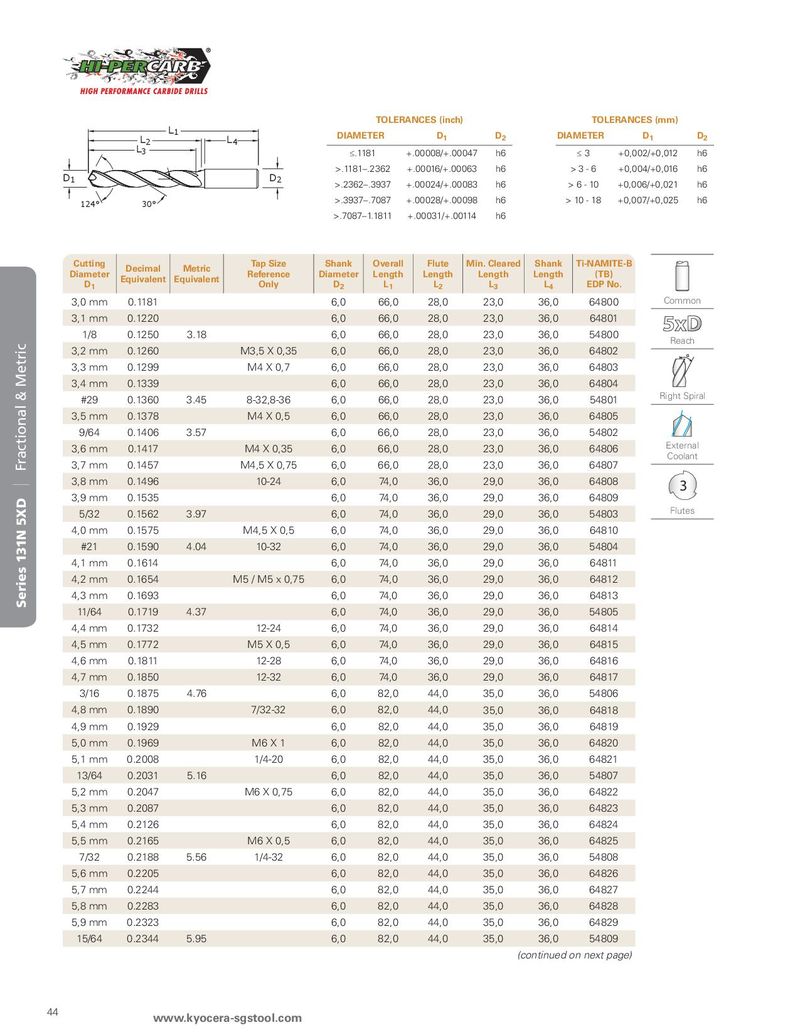

| L1 L2 L4 | TOLE DIAMETER | RANCES (inch) D1 | D2 | TOL DIAMETER | ERANCES (mm) D1 | D2 |
| L3 | ≤.1181 | +.00008/+.00047 | h6 | ≤ 3 | +0,002/+0,012 | h6 |
| 2 D 1 D | >.1181–.2362 >.2362–.3937 | +.00016/+.00063 +.00024/+.00083 | h6 h6 | > 3 - 6 > 6 - 10 | +0,004/+0,016 +0,006/+0,021 | h6 h6 |
| 124° 30° | >.3937–.7087 | +.00028/+.00098 | h6 | > 10 - 18 | +0,007/+0,025 | h6 |
| >.7087–1.1811 | +.00031/+.00114 | h6 |
| Cutting Diameter | Decimal | Metric | Tap Size Reference | Shank Diameter | Overall Length | Flute Length | Min. Cleared Length | Shank Length | Ti-NAMITE-B (TB) | |
| D1 | Equivalent | Equivalent | Only | D2 | L1 | L2 | L3 | L4 | EDP No. | |
| 3,0 mm | 0.1181 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64800 | Common | ||
| 3,1 mm | 0.1220 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64801 | |||
| 1/8 | 0.1250 | 3.18 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 54800 | Reach | |
| 3,2 mm | 0.1260 | M3,5 X 0,35 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64802 | ||
| 3,3 mm | 0.1299 | M4 X 0,7 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64803 | ||
| 3,4 mm | 0.1339 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64804 | |||
| #29 | 0.1360 | 3.45 | 8-32,8-36 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 54801 | Right Spiral |
| 3,5 mm | 0.1378 | M4 X 0,5 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64805 | ||
| 9/64 | 0.1406 | 3.57 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 54802 | ||
| 3,6 mm | 0.1417 | M4 X 0,35 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64806 | External Clnt | |
| 3,7 mm | 0.1457 | M4,5 X 0,75 | 6,0 | 66,0 | 28,0 | 23,0 | 36,0 | 64807 | ooa | |
| 3,8 mm | 0.1496 | 10-24 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64808 | 3 | |
| 3,9 mm | 0.1535 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64809 | |||
| 5/32 | 0.1562 | 3.97 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 54803 | Flutes | |
| 4,0 mm | 0.1575 | M4,5 X 0,5 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64810 | ||
| #21 | 0.1590 | 4.04 | 10-32 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 54804 | |
| 4,1 mm | 0.1614 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64811 | |||
| 4,2 mm | 0.1654 | M5 / M5 x 0,75 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64812 | ||
| 4,3 mm | 0.1693 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64813 | |||
| 11/64 | 0.1719 | 4.37 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 54805 | ||
| 4,4 mm | 0.1732 | 12-24 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64814 | ||
| 4,5 mm | 0.1772 | M5 X 0,5 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64815 | ||
| 4,6 mm | 0.1811 | 12-28 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64816 | ||
| 4,7 mm | 0.1850 | 12-32 | 6,0 | 74,0 | 36,0 | 29,0 | 36,0 | 64817 | ||
| 3/16 | 0.1875 | 4.76 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 54806 | ||
| 4,8 mm | 0.1890 | 7/32-32 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64818 | ||
| 4,9 mm | 0.1929 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64819 | |||
| 5,0 mm | 0.1969 | M6 X 1 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64820 | ||
| 5,1 mm | 0.2008 | 1/4-20 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64821 | ||
| 13/64 | 0.2031 | 5.16 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 54807 | ||
| 5,2 mm | 0.2047 | M6 X 0,75 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64822 | ||
| 5,3 mm | 0.2087 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64823 | |||
| 5,4 mm | 0.2126 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64824 | |||
| 5,5 mm | 0.2165 | M6 X 0,5 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64825 | ||
| 7/32 | 0.2188 | 5.56 | 1/4-32 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 54808 | |
| 5,6 mm | 0.2205 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64826 | |||
| 5,7 mm | 0.2244 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64827 | |||
| 5,8 mm | 0.2283 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64828 | |||
| 5,9 mm | 0.2323 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64829 | |||
| 15/64 | 0.2344 | 5.95 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 54809 |
