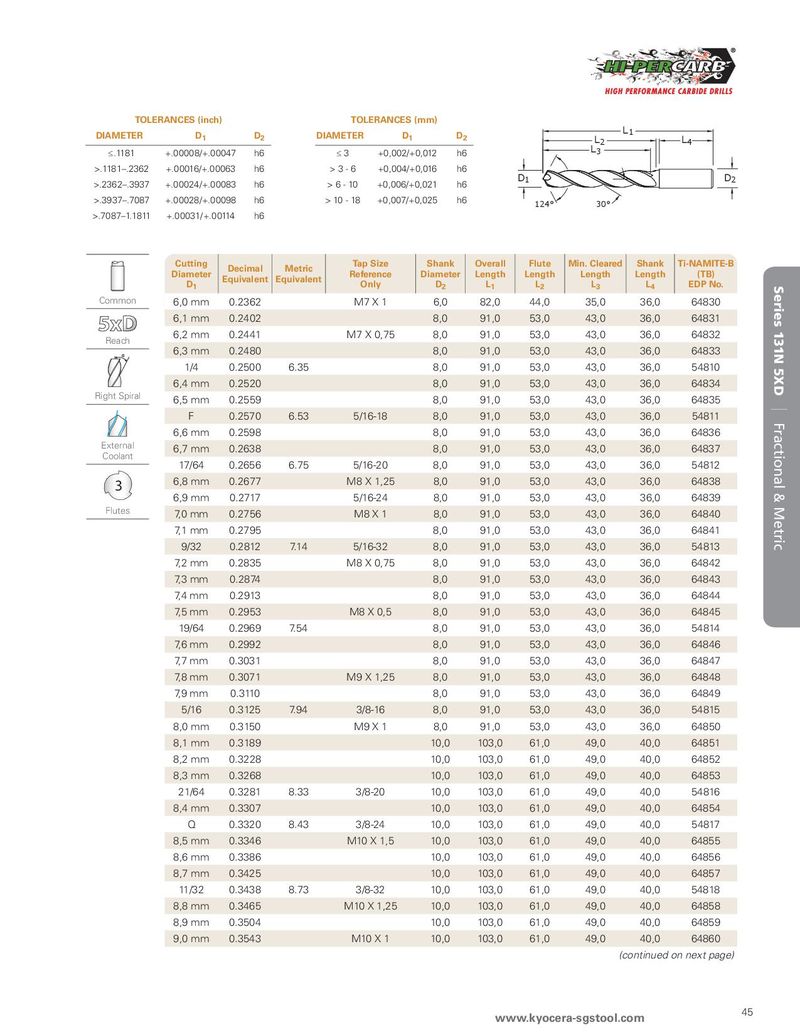

| TOLE DIAMETER | RANCES (inch) D1 | D2 | TOL DIAMETER | ERANCES (mm) D1 | D2 | L1 L2 L4 |
| ≤.1181 | +.00008/+.00047 | h6 | ≤ 3 | +0,002/+0,012 | h6 | L3 |
| >.1181–.2362 >.2362–.3937 | +.00016/+.00063 +.00024/+.00083 | h6 h6 | > 3 - 6 > 6 - 10 | +0,004/+0,016 +0,006/+0,021 | h6 h6 | 2 D 1 D |
| >.3937–.7087 | +.00028/+.00098 | h6 | > 10 - 18 | +0,007/+0,025 | h6 | 124° 30° |
| >.7087–1.1811 | +.00031/+.00114 | h6 |
| Cutting Diameter D1 | Decimal Equivalent | Metric Equivalent | Tap Size Reference Only | Shank Diameter D2 | Overall Length L1 | Flute Length L2 | Min. Cleared Length L3 | Shank Length L4 | Ti-NAMITE-B (TB) EDP No. | |
| Common | 6,0 mm | 0.2362 | M7 X 1 | 6,0 | 82,0 | 44,0 | 35,0 | 36,0 | 64830 | |
| 6,1 mm | 0.2402 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64831 | |||
| Reach | 6,2 mm | 0.2441 | M7 X 0,75 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64832 | |
| 6,3 mm | 0.2480 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64833 | |||
| 1/4 | 0.2500 | 6.35 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54810 | ||
| 6,4 mm | 0.2520 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64834 | |||
| Right Spiral | 6,5 mm | 0.2559 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64835 | ||
| F | 0.2570 | 6.53 | 5/16-18 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54811 | |
| 6,6 mm | 0.2598 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64836 | |||
| External Clt | 6,7 mm | 0.2638 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64837 | ||
| ooan | 17/64 | 0.2656 | 6.75 | 5/16-20 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54812 |
| 3 | 6,8 mm | 0.2677 | M8 X 1,25 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64838 | |
| 6,9 mm | 0.2717 | 5/16-24 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64839 | ||
| Flutes | 7,0 mm | 0.2756 | M8 X 1 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64840 | |
| 7,1 mm | 0.2795 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64841 | |||
| 9/32 | 0.2812 | 7.14 | 5/16-32 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54813 | |
| 7,2 mm | 0.2835 | M8 X 0,75 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64842 | ||
| 7,3 mm | 0.2874 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64843 | |||
| 7,4 mm | 0.2913 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64844 | |||
| 7,5 mm | 0.2953 | M8 X 0,5 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64845 | ||
| 19/64 | 0.2969 | 7.54 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54814 | ||
| 7,6 mm | 0.2992 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64846 | |||
| 7,7 mm | 0.3031 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64847 | |||
| 7,8 mm | 0.3071 | M9 X 1,25 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64848 | ||
| 7,9 mm | 0.3110 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64849 | |||
| 5/16 | 0.3125 | 7.94 | 3/8-16 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 54815 | |
| 8,0 mm | 0.3150 | M9 X 1 | 8,0 | 91,0 | 53,0 | 43,0 | 36,0 | 64850 | ||
| 8,1 mm | 0.3189 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64851 | |||
| 8,2 mm | 0.3228 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64852 | |||
| 8,3 mm | 0.3268 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64853 | |||
| 21/64 | 0.3281 | 8.33 | 3/8-20 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 54816 | |
| 8,4 mm | 0.3307 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64854 | |||
| Q | 0.3320 | 8.43 | 3/8-24 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 54817 | |
| 8,5 mm | 0.3346 | M10 X 1,5 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64855 | ||
| 8,6 mm | 0.3386 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64856 | |||
| 8,7 mm | 0.3425 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64857 | |||
| 11/32 | 0.3438 | 8.73 | 3/8-32 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 54818 | |
| 8,8 mm | 0.3465 | M10 X 1,25 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64858 | ||
| 8,9 mm | 0.3504 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64859 | |||
| 9,0 mm | 0.3543 | M10 X 1 | 10,0 | 103,0 | 61,0 | 49,0 | 40,0 | 64860 |
