PRECISION.

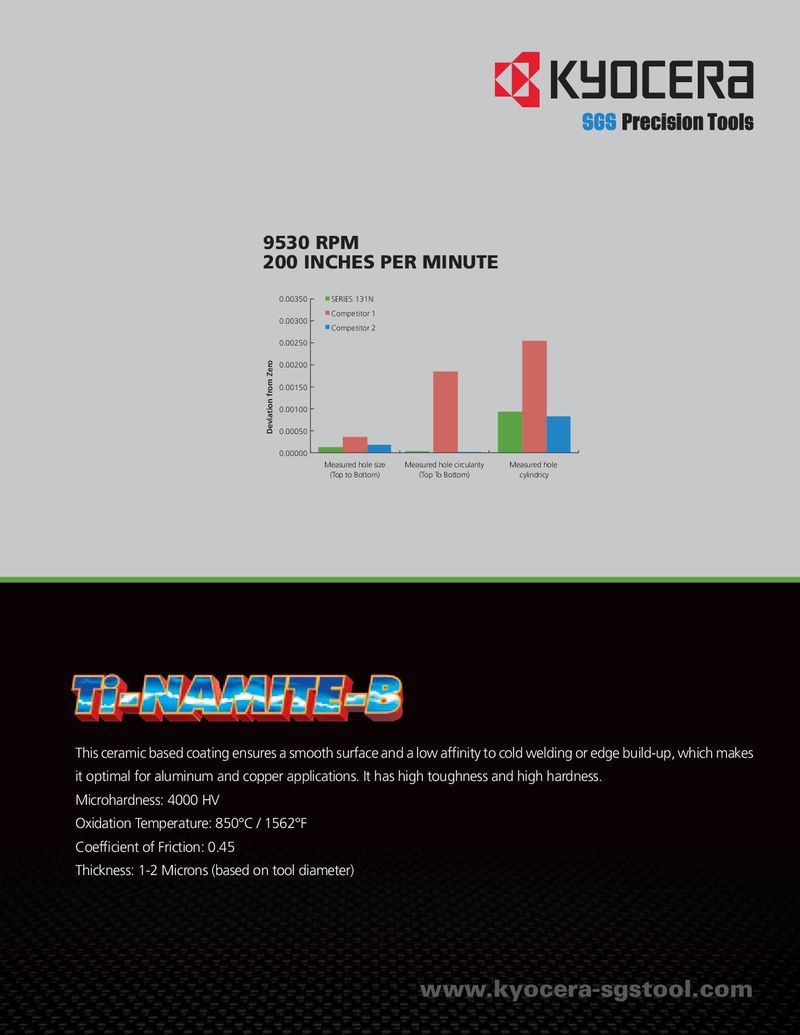

SERIES 131N 3 Flute Drill vs. Competition 2 Flute Drill in 2024 Aluminum

4847 RPM 6786 RPM9530 RPM
65 INCHES PER MINUTE 100 INCHES PER MINUTE 200 INCHES PER MINUTE
0.00400SERIES 131N0.00400SERIES 131N0.00350SERIES 131N
Competitor 1Competitor 1Competitor 1
0.003500.003500.00300
Competitor 2Competitor 2Competitor 2
0.003000.00300
0.00250
0.002500.00250
0.00200
0.002000.00200
0.00150
0.001500.00150
0.00100
0.001000.00100
0.000500.000500.00050
0.000000.000000.00000
Measured hole sizeMeasured hole circularityMeasured holeMeasured hole sizeMeasured hole circularityMeasured holeMeasured hole sizeMeasured hole circularityMeasured hole
(Top to Bottom)(Top To Bottom)cylindricy(Top to Bottom)(Top To Bottom)cylindricy(Top to Bottom)(Top To Bottom)cylindricy

PASSION.

Independent Lab Results Indicate the Hi-PerCarb Series 131N Drill outperforms the competition in measured hole

quality at a variety of speed and feed rates.

This ceramic based coating ensures a smooth surface and a low affinity to cold welding or edge build-up, which makes

it optimal for aluminum and copper applications. It has high toughness and high hardness.

Microhardness: 4000 HV

Oxidation Temperature: 850°C / 1562°F

Coefficient of Friction: 0.45

Thickness: 1-2 Microns (based on tool diameter)
