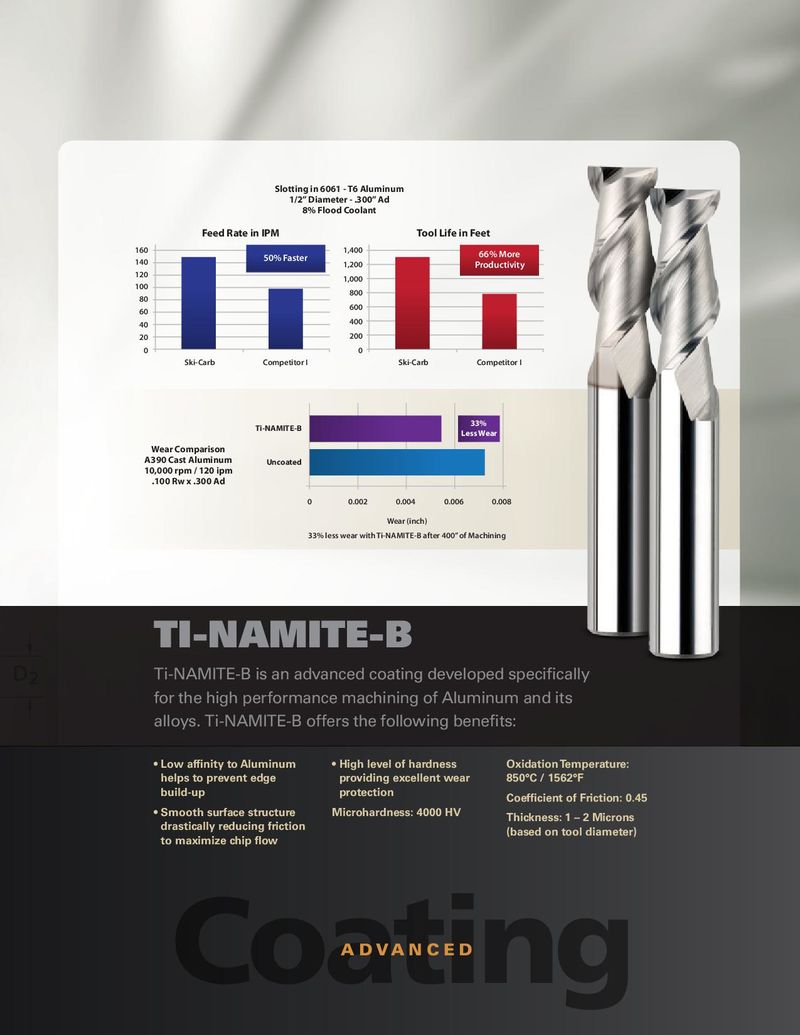

Slotting in 6061 - T6 Aluminum 1/2” Diameter - .300” Ad 8% Flood Coolant
Feed Rate in IPM Tool Life in Feet
| 160 | 1,400 | 66% More |
| 140 | 50% Faster | |
| 1,200 | Productivity | |
| 120 | 1,000 | |
| 100 | ||
| 800 | ||
| 80 | ||
| 60 | 600 | |
| 40 | 400 | |
| 20 | 200 |
0 0 Wear Comparison
Ski-Carb Competitor I A390 Cast AluminumSki-Carb Competitor I
10,000 rpm / 120 ipm .100 Rw x .300 Ad
33% Ti-NAMITE-B Less Wear Wear Comparison A390 Cast Aluminum Uncoated 10,000 rpm / 120 ipm .100 Rw x .300 Ad
0 0.002 0.004 0.006 0.008
33% Wear (inch) Ti-NAMITE-B Less Wear 33% less wear with Ti-NAMITE-B after 400” of Machining Uncoated
0 0.002 TI-NAMITE-B0.0040.0060.008 Wear (inch) 33% less wear with Ti-NAMITE-B after 400” of Machining
Ti-NAMITE-B is an advanced coating developed specifically
for the high performance machining of Aluminum and its
alloys. Ti-NAMITE-B offers the following benefits:
- Low affinity to Aluminum
- High level of hardness Oxidation Temperature:
| helps to prevent edge | providing excellent wear | 850°C / 1562°F |
| build-up | protection | Coefficient of Friction: 0.45 |
- Smooth surface structure Microhardness: 4000 HV
