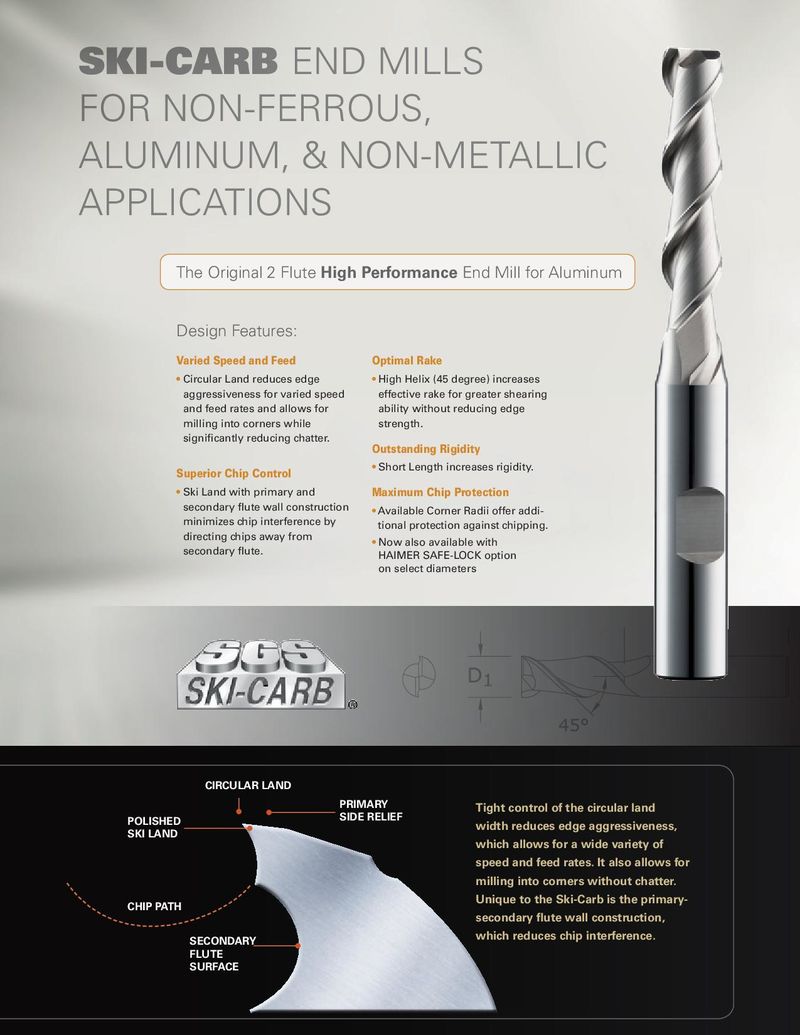

SKI-CARB END MILLS

FOR NON-FERROUS,

ALUMINUM, & NON-METALLIC

APPLICATIONS

The Original 2 Flute High Performance End Mill for Aluminum

Design Features:

Varied Speed and Feed Optimal Rake

  • Circular Land reduces edge
  • High Helix (45 degree) increases
aggressiveness for varied speedeffective rake for greater shearing
and feed rates and allows forability without reducing edge
milling into corners whilestrength.
significantly reducing chatter.
Outstanding Rigidity
Superior Chip Control• Short Length increases rigidity.
  • Ski Land with primary and Maximum Chip Protection secondary flute wall construction Available Corner Radii offer addiminimizes chip interference by tional protection against chipping. directing chips away from
  • Now also available with

secondary flute. HAIMER SAFE-LOCK option

on select diameters

CIRCULAR LAND POLISHED SKI LAND

CHIP PATH SECONDARY FLUTE SURFACE

PRIMARY SIDE RELIEF

Tight control of the circular land width reduces edge aggressiveness, which allows for a wide variety of speed and feed rates. It also allows for milling into corners without chatter. Unique to the Ski-Carb is the primarysecondary flute wall construction, which reduces chip interference.
