| L1 L2 | TO DIAMETER | LERANCES (mm) D1 | D2 | |
| 6 | +0,000 / –0,008 | h6 | ||
| 1 D | 2 D 38° | 8 - 10 12 - 16 20 | +0,000 / –0,009 +0,000 / –0,011 +0,000 / –0,013 | h6 h6 h6 |

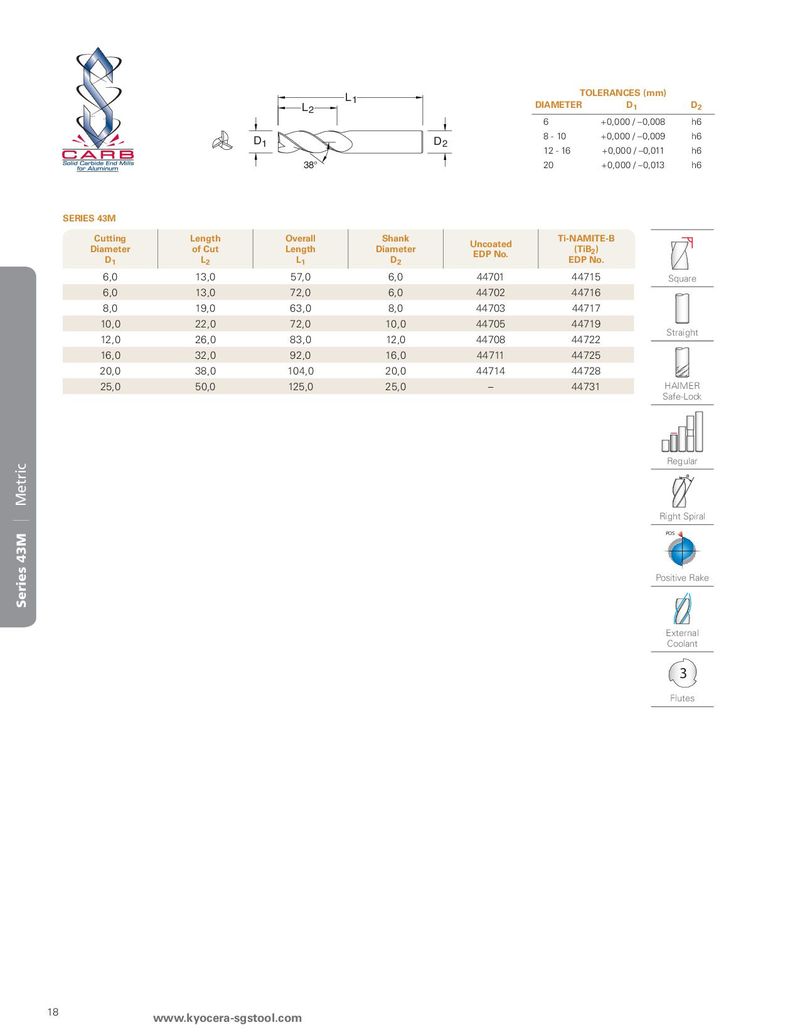

SERIES 43M
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Uncoated EDP No | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | . | EDP No. | |
| 6,0 | 13,0 | 57,0 | 6,0 | 44701 | 44715 | Square |
| 6,0 | 13,0 | 72,0 | 6,0 | 44702 | 44716 | |
| 8,0 | 19,0 | 63,0 | 8,0 | 44703 | 44717 | |
| 10,0 | 22,0 | 72,0 | 10,0 | 44705 | 44719 | Sih |
| 12,0 | 26,0 | 83,0 | 12,0 | 44708 | 44722 | tragt |
| 16,0 | 32,0 | 92,0 | 16,0 | 44711 | 44725 | |
| 20,0 | 38,0 | 104,0 | 20,0 | 44714 | 44728 | |
| 25,0 | 50,0 | 125,0 | 25,0 | – | 44731 | HAIMER |
| Safe-Lock | ||||||
| Regular | ||||||
| Right Spiral | ||||||
| POS Positive Rake | ||||||
| External Coolant | ||||||
| 3 Flutes |
