| TO | LERANCES (mm) | |
| DIAMETER | D1 | D2 |
| 6 | +0,000 / –0,008 | h6 |
| 8 - 10 | +0,000 / –0,009 | h6 |
| 12 - 16 | +0,000 / –0,011 | h6 |
| 20 | +0,000 / –0,013 | h6 |

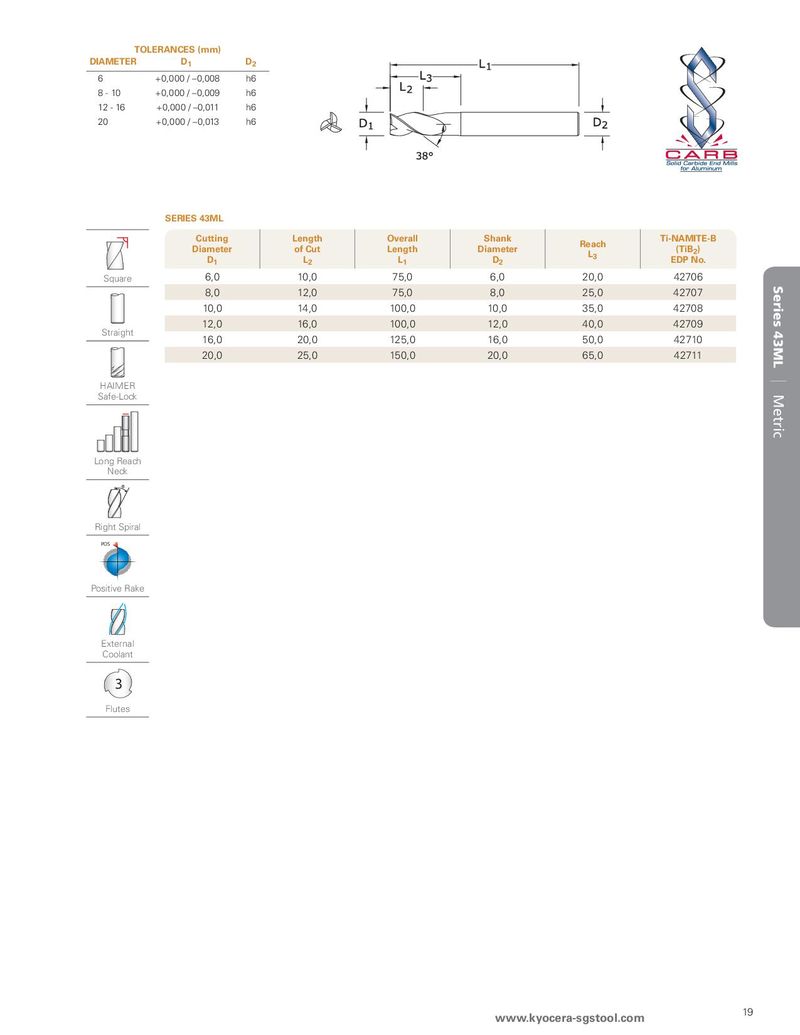

SERIES 43ML
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Reach L | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | 3 | EDP No. | |
| Square | 6,0 | 10,0 | 75,0 | 6,0 | 20,0 | 42706 |
| 8,0 | 12,0 | 75,0 | 8,0 | 25,0 | 42707 | |
| 10,0 | 14,0 | 100,0 | 10,0 | 35,0 | 42708 | |
| Straiht | 12,0 | 16,0 | 100,0 | 12,0 | 40,0 | 42709 |
| g | 16,0 | 20,0 | 125,0 | 16,0 | 50,0 | 42710 |
| 20,0 | 25,0 | 150,0 | 20,0 | 65,0 | 42711 | |
| HAIMER Safe-Lock | ||||||
| Long Reach Neck | ||||||
| Right Spiral | ||||||
| POS | ||||||
| Positive Rake | ||||||
| External Coolant | ||||||
| 3 Flutes |
