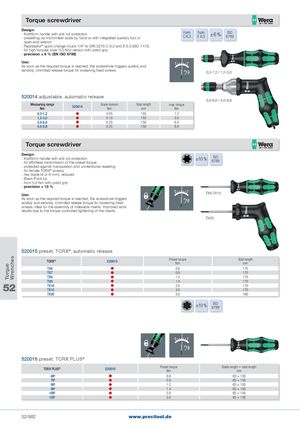

Общий каталог PRECITOOL - страница 987

Torque screwdriver Design:- Kraftform handle with anti-roll protection- presetting via micrometer scale by hand or with integrated auxiliary tool orFormC 6,3FormE 6,3±6%ISO6789 open-end wrench - Rapidaptor® quick-change chuck 1/4" to DIN 3216-C 6,3 and E 6.3 (ISO 1173) - for high torques (over 3.0 Nm) version with pistol grip - precision ± 6 % (EN ISO 6789) Use: As soon as the required torque is reached, the screwdriver triggers audibly and sensibly. Unlimited release torque for loosening fixed screws 0,3-1,2 / 1,2-3,0 520014 adjustable, automatic release 3,0-6,0 / 4,0-8,8 Measuring rangeNm 520014 Scale divisionNm Total lengthmm max. torqueNm 0,3-1,2  0.05 155 1.2 1,2-3,0  0.10 155 3.0 3,0-6,0  0.25 150 6.0 4,0-8,8  0.25 150 8.8 Torque screwdriver Design:- Kraftform handle with anti-roll protection- for effortless transmission of the preset torque ±10 % ISO6789 - protected against manipulation and unintentional resetting - for female TORX® screws - hex blade (4 or 8 mm), reduced - Black-Point tip - from 5.0 Nm with pistol grip - precision ± 10 % Use: TX6-TX15 As soon as the required torque is reached, the screwdriver triggers audibly and sensibly. Unlimited release torque for loosening fixed screws. Ideal for the assembly of indexable inserts. Improved work results due to the torque-controlled tightening of the inserts TX20 520015 preset, TORX®, automatic release TORX® 520015 Preset torqueNm Total lengthmm TX6  0.6 170 TX7  0.9 170 TX8  1.2 170 TX9  1.4 170 52 TX10TX15  2.03.0 170170 TX20  5.0 160 ±10 % ISO6789 520016 preset, TORX PLUS® TORX PLUS® 520016 Preset torqueNm Blade length × total lengthmm  6IP  0.6 65 × 105  7IP  0.9 65 × 105  8IP  1.2 65 × 105  9IP  1.4 65 × 105 10IP  2.0 65 × 105 15IP  3.0 65 × 105 52/982 www.precitool.de Torque Wrenches
