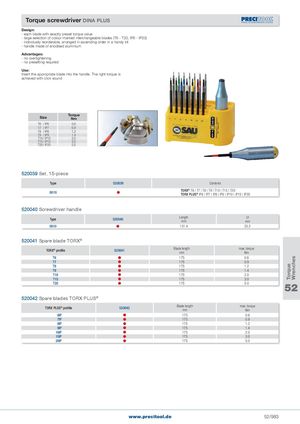

Общий каталог PRECITOOL - страница 988

Torque screwdriver DINA PLUS Design: - each blade with exactly preset torque value - large selection of colour-marked interchangeable blades (T6 - T20, IP6 - IP20) - individually reorderable, arranged in ascending order in a handy kit - handle made of anodised aluminium Advantages: - no overtightening - no presetting required Use: Insert the appropriate blade into the handle. The right torque is achieved with click sound e Torque Size Nm 520039 Set, 15-piece Type 520039 Contents 0010  TORX® T6 | T7 | T8 | T9 | T10 | T15 | T20TORX PLUS® IP6 | IP7 | IP8 | IP9 | IP10 | IP15 | IP20 520040 Screwdriver handle Type 520040 Lengthmm mm 0010  131.4 33.2 520041 Spare blade TORX® TORX® profile 520041 Blade lengthmm max. torqueNm T6  175 0.6 T7  175 0.9 T8  175 1.2 T9  175 1.4 T10  175 2.0 T15  175 3.0 T20  175 5.0 52 520042 Spare blades TORX PLUS® TORX PLUS® profile 520042 Blade lengthmm max. torqueNm  6IP  175 0.6  7IP  175 0.9  8IP  175 1.2  9IP  175 1.4 10IP  175 2.0 15IP  175 3.0 20IP  175 5.0 www.precitool.de 52/983 Torque Wrenches
