Общий каталог PRECITOOL - страница 986

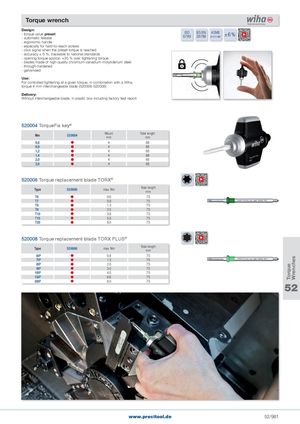

Torque wrench Design:- torque value preset- automatic release ISO6789BS/EN26789ASME B107.14M ±6% - ergonomic handle - especially for hard-to-reach screws - click signal when the preset torque is reached - accuracy ± 6 %, traceable to national standards - opening torque approx. +30 % over tightening torque - blades made of high-quality chromium-vanadium-molybdenum steel - through-hardened - galvanised Use: For controlled tightening at a given torque, in combination with a Wiha torque 4 mm interchangeable blade (520006-520008) Delivery: Without interchangeable blade, in plastic box including factory test report 520004 TorqueFix key® Nm 520004 Mountmm Total lengthmm 0,6  4 68 0,9  4 68 1,2  4 68 1,4  4 68 2,0  4 68 3,0  4 68 520006 Torque replacement blade TORX® Type 520006 max. Nm Total lengthmm T6  0.6 75 T7  0.9 75 T8  1.3 75 T9  2.5 75 T10  3.8 75 T15  5.5 75 T20  8.0 75 520008 Torque replacement blade TORX PLUS® Type 520008 max. Nm Total lengthmm  6IP  0.8 75  7IP  1.3 75  8IP  2.0 75  9IP  3.0 75 10IP  4.5 75 15IP  6.6 75 20IP  8.0 75 52 www.precitool.de 52/981 Torque Wrenches
