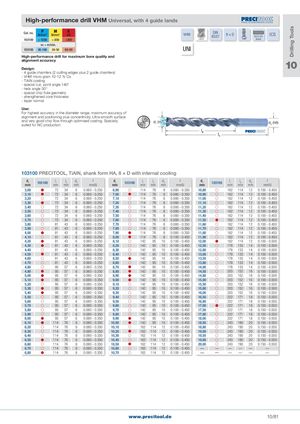

Cat. no. 103100P N/mm2 < 1200M N/mm2 K HB < 850VHMcoatedDIN 65378 × D140°6535 HA shankICS
103100vc = m 40-100/min. 30-50 60-90UNI

High-performance drill for maximum bore quality and alignment accuracy 10

Design: - 4 guide chamfers (2 cutting edges plus 2 guide chamfers) - VHM micro grain 10-12 % Co - TiAlN coating - special cut, point angle 140° - helix angle 30° - special chip flute geometry - strengthened core thickness - taper normal

Use: For highest accuracy in the diameter range, maximum accuracy of alignment and positioning plus concentricity. Ultra-smooth surface and very good chip flow through optimised coating. Specially d (m7) d (h6)

suited for NC production 1 2

103100 PRECITOOL, TiAlN, shank form HA, 8 × D with internal cooling

d1 mm103100l1 mml2 mmd2 mmf mm/Ud1 mm103100l1 mml2 mmd2 mmf mm/Ud1 mm103100l1 mml2 mmd2 mmf mm/U
3,00723460�060 - 0�2506,901147680�080 - 0�35010,80162114120�100 - 0�450
3,10723460�060 - 0�2507,001147680�080 - 0�35010,90162114120�100 - 0�450
3,20723460�060 - 0�2507,101147680�080 - 0�35011,00162114120�100 - 0�450
3,30723460�060 - 0�2507,201147680�080 - 0�35011,10162114120�100 - 0�450
3,40723460�060 - 0�2507,301147680�080 - 0�35011,20162114120�100 - 0�450
3,50723460�060 - 0�2507,401147680�080 - 0�35011,30162114120�100 - 0�450
3,60723460�060 - 0�2507,501147680�080 - 0�35011,40162114120�100 - 0�450
3,70723460�060 - 0�2507,601147680�080 - 0�35011,50162114120�100 - 0�450
3,80814360�060 - 0�2507,701147680�080 - 0�35011,60162114120�100 - 0�450
3,90814360�060 - 0�2507,801147680�080 - 0�35011,70162114120�100 - 0�450
4,00814360�060 - 0�2507,901147680�080 - 0�35011,80162114120�100 - 0�450
4,10814360�060 - 0�2508,001147680�100 - 0�45011,90162114120�100 - 0�450
4,20814360�060 - 0�2508,1014295100�100 - 0�45012,00162114120�100 - 0�500
4,30814360�060 - 0�2508,2014295100�100 - 0�45012,50178133140�100 - 0�500
4,40814360�060 - 0�2508,3014295100�100 - 0�45012,80178133140�100 - 0�500
4,50814360�060 - 0�2508,4014295100�100 - 0�45013,00178133140�100 - 0�500
4,60814360�060 - 0�2508,5014295100�100 - 0�45013,50178133140�100 - 0�500
4,70814360�060 - 0�2508,6014295100�100 - 0�45013,80178133140�100 - 0�500
4,80955760�060 - 0�2508,7014295100�100 - 0�45014,00178133140�100 - 0�500
4,90955760�060 - 0�2508,8014295100�100 - 0�45014,50203152160�100 - 0�500
5,00955760�080 - 0�3508,9014295100�100 - 0�45014,80203152160�100 - 0�500
5,10955760�080 - 0�3509,0014295100�100 - 0�45015,00203152160�100 - 0�500
5,20955760�080 - 0�3509,1014295100�100 - 0�45015,50203152160�100 - 0�500
5,30955760�080 - 0�3509,2014295100�100 - 0�45015,80203152160�100 - 0�500
5,40955760�080 - 0�3509,3014295100�100 - 0�45016,00203152160�150 - 0�550
5,50955760�080 - 0�3509,4014295100�100 - 0�45016,50222171180�150 - 0�550
5,60955760�080 - 0�3509,5014295100�100 - 0�45016,80222171180�150 - 0�550
5,70955760�080 - 0�3509,6014295100�100 - 0�45017,00222171180�150 - 0�550
5,80955760�080 - 0�3509,7014295100�100 - 0�45017,50222171180�150 - 0�550
5,90955760�080 - 0�3509,8014295100�100 - 0�45017,80222171180�150 - 0�550
6,00955760�080 - 0�3509,9014295100�100 - 0�45018,00222171180�150 - 0�550
6,101147680�080 - 0�35010,0014295100�100 - 0�45018,50243190200�150 - 0�550
6,201147680�080 - 0�35010,10162114120�100 - 0�45018,80243190200�150 - 0�550
6,301147680�080 - 0�35010,20162114120�100 - 0�45019,00243190200�150 - 0�550
6,401147680�080 - 0�35010,30162114120�100 - 0�45019,50243190200�150 - 0�550
6,501147680�080 - 0�35010,40162114120�100 - 0�45019,80243190200�150 - 0�550
6,601147680�080 - 0�35010,50162114120�100 - 0�45020,00243190200�150 - 0�550
6,701147680�080 - 0�35010,60162114120�100 - 0�450——————
6,801147680�080 - 0�35010,70162114120�100 - 0�450——————
