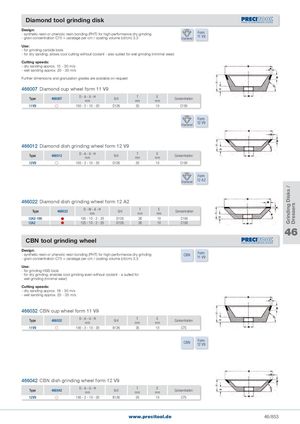

A Grinding Disks / Dressers Diamond tool grinding disk Design: - synthetic resin or phenolic resin bonding (PHT) for high-performance dry grinding- grain concentration C75 = caratage per cm / coating volume (ct/cm) 3.3FormDiamond11 V9 Use: - for grinding carbide tools - for dry sanding, allows cool cutting without coolant - also suited for wet grinding (minimal wear) Cutting speeds: - dry sanding approx. 15 - 30 m/s - wet sanding approx. 20 - 30 m/s A Further dimensions and granulation grades are available on request 466007 Diamond cup wheel form 11 V9 Type 466007 D-A-U-Hmm Grit Tmm Emm Concentration 11V9 100 - 2 - 10 - 20 D126 35 10 C100 Form Diamond 12 V9 A 466012 Diamond dish grinding wheel form 12 V9 Type 466012 D-A-U-Hmm Grit Tmm Emm Concentration 12V9 100 - 2 - 10 - 20 D126 20 10 C100 Form Diamond 12 A2 466022 Diamond dish grinding wheel form 12 A2 Type 466022 D-W-A-Hmm Grit Tmm Emm Concentration 12A2-100 100 - 10 - 2 - 20 D126 26 10 C100 12A2 125 - 10 - 2 - 20 D126 26 10 C100 46 CBN tool grinding wheel Design: - synthetic resin or phenolic resin bonding (PHT) for high-performance dry grinding- grain concentration C75 = caratage per cm / coating volume (ct/cm) 3.3CBNForm11 V9 Use: - for grinding HSS tools - for dry grinding, enables cool grinding even without coolant - a suited for wet grinding (minimal wear) Cutting speeds: - dry sanding approx. 18 - 30 m/s - wet sanding approx. 25 - 35 m/s A 466032 CBN cup wheel form 11 V9 Type 466032 D-A-U-Hmm Grit Tmm Emm Concentration 11V9 100 - 2 - 10 - 20 B126 35 10 C75 CBN Form12 V9 A 466042 CBN dish grinding wheel form 12 V9 Type 466042 D-A-U-Hmm Grit Tmm Emm Concentration 12V9 100 - 2 - 10 - 20 B126 20 10 C75 www.precitool.de 46/853
