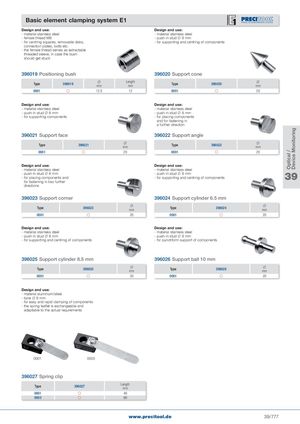

Optical / Device Monitoring Basic element clamping system E1 Design and use: Design and use: - material stainless steel - material stainless steel - female thread M8 - push-in stud x 8 mm - for centring squares, removable disks, - for supporting and centring of components connection plates, bolts etc. - the female thread serves as extractable threaded sleeve, in case the bush should get stuck 396019 Positioning bush 396020 Support cone Type 396019 xmm Lengthmm Type 396020 xmm 0001  12.5 12 0001  20 Design and use: Design and use: - material stainless steel - material stainless steel - push-in stud x 8 mm - push-in stud x 8 mm - for supporting components - for placing components and for fastening in a further direction 396021 Support face 396022 Support angle Type 396021 xmm Type 396022 xmm 0001  20 0001  20 Design and use: Design and use: - material stainless steel - material stainless steel - push-in stud x 8 mm- for placing components and - push-in stud x 8 mm- for supporting and centring of components 39 for fastening in two further directions 396023 Support corner 396024 Support cylinder 6.5 mm Type 396023 xmm Type 396024 xmm 0001  20 0001  20 Design and use: Design and use: - material stainless steel - material stainless steel - push-in stud x 8 mm - push-in stud x 8 mm - for supporting and centring of components - for punctiform support of components 396025 Support cylinder 8.5 mm 396026 Support ball 10 mm Type 396025 xmm Type 396026 xmm 0001  20 0001  20 Design and use: - material aluminium/steel - bore x 8 mm - for easy and rapid clamping of components - the spring leaflet is exchangeable and adaptable to the actual requirements 0001 0003 396027 Spring clip Type 396027 Lengthmm 0001  40 0003  60 www.precitool.de 39/777
