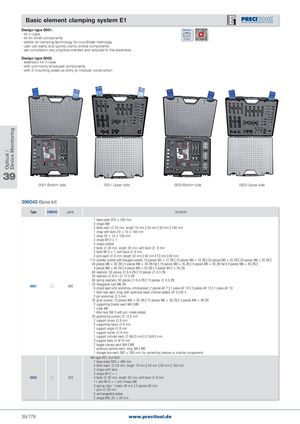

Optical / Device Monitoring Basic element clamping system E1 Design type 0001: Delivered - kit in case - kit for small components in case - starter kit clamping technology for coordinate metrology - user can easily and quickly clamp simple components - set compilation very practice-oriented and reduced to the essentials Design type 0003: - extension kit in case - with commonly employed components - with 3 mounting plates as entry to modular construction 39 0001 Bottom side 0001 Upper side 0003 Bottom side 0003 Upper side 396040 Base kit Type 396040 parts Contents    1 base plate 250 × 250 mm    3 straps M6    2 bolts each x 20 mm, length 10 mm | 30 mm | 50 mm | 100 mm    1 strap with bore 20 × 10 × 100 mm    1 strap 20 × 10 × 100 mm    2 straps M12 × 1    3 straps slotted   2 bolts x 20 mm, length 35 mm, with bore x 8 mm    2 bolts M12 × 1, with bore x 8 mm    2 pins each x 8 mm, length 32 mm | 50 mm | 70 mm | 80 mm 114 cylinder screws with hexagon socket: 10 pieces M4 × 12 ZN | 10 pieces M6 × 16 ZN | 20 pieces M6 × 20 ZN | 20 pieces M6 × 25 ZN |   20 pieces M6 × 30 ZN | 4 pieces M6 × 30 ZN flat | 10 pieces M6 × 35 ZN | 4 pieces M6 × 35 ZN flat | 4 pieces M6 × 40 ZN |    4 pieces M6 × 45 ZN | 4 pieces M6 × 50 ZN | 4 pieces M12 × 25 ZN   60 washers: 50 pieces x 6.4 ZN | 10 pieces x 4.3 ZN   25 washers x 6.4 / x 17.3 ZN   60 spring washers: 50 pieces x 6.4 ZN | 10 pieces x 4.3 ZN 0001  405   25 hexagonal nuts M6 ZN   6 single open end wrenches, chromatised: 2 pieces AF 7 | 1 piece AF 10 | 2 pieces AF 13 | 1 piece AF 19    1 Allen key each, long, with spherical head, chrome-plated, AF 3 | AF 5    2 pin wrenches x 5 mm   35 grub screws: 15 pieces M6 × 25 ZN | 15 pieces M6 × 30 ZN | 5 pieces M6 × 40 ZN    2 supporting blocks each M4 | M6    1 cube M6    1 Allen key SW 5 with pin, nickel-plated   20 positioning bushes x 12.5 mm    2 support cones x 8 mm    2 supporting faces x 8 mm    1 support angle x 8 mm   1 support corner x 8 mm    1 support cylinder each x 8/6.5 mm | x 8/8.5 mm    3 support balls x 8/10 mm    2 toggle clamps each M4 | M8    1 pressure spindle each, long, M4 | M8    1 storage box each 365 × 295 mm, for connecting devices or modular components like type 001, but with:    1 base plate 500 × 400 mm    3 bolts each, x 20 mm, length 10 mm | 30 mm | 50 mm | 100 mm    2 straps with bore    3 straps M12 × 1 0003  423   4 bolts x 20 mm, length 35 mm, with bore x 8 mm    1× bolt M12 × 1 with thread M6    3 spring clips: 1 piece 40 mm | 2 pieces 60 mm   1 joint x 20 mm    3 exchangeable plates    2 straps M6, 20 × 20 mm 39/778 www.precitool.de
