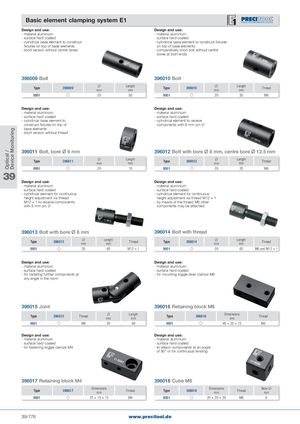

Общий каталог PRECITOOL - страница 781

Optical / Device Monitoring Basic element clamping system E1 Design and use: Design and use: - material aluminium - material aluminium - surface hard coated - surface hard coated - cylindrical base element to construct - cylindrical base element to construct fixtures fixtures on top of base elements on top of base elements - short version without centre bores - comparatively short bolt without centre bores at both ends 396009 Bolt 396010 Bolt Type 396009 xmm Lengthmm Type 396010 xmm Lengthmm Thread 0001  20 50 0001  20 30 M6 Design and use: Design and use: - material aluminium - material aluminium - surface hard coated - surface hard coated - cylindrical base element to - cylindrical element to receive construct fixtures on top of components with 8 mm pin x base elements - short version without thread 396011 Bolt, bore X 6 mm 396012 Bolt with bore X 8 mm, centre bore X 12.5 mm Type 396011 xmm Lengthmm Type 396012 xmm Lengthmm Thread 0001  20 10 0001  20 35 M6 39 Design and use: Design and use: - material aluminium - material aluminium - surface hard coated - surface hard coated - cylindrical element for continuous - cylindrical element for continuous height adjustment via thread height adjustment via thread M12 × 1 M12 × 1 to receive components - by means of the thread M6 other with 8 mm pin x components may be attached 396013 Bolt with bore X 8 mm 396014 Bolt with thread Type 396013 xmm Lengthmm Thread Type 396014 xmm Lengthmm Thread 0001  20 65 M12 × 1 0001  20 65 M6 and M12 × 1 Design and use: Design and use: - material aluminium - material aluminium - surface hard coated - surface hard coated - for installing further components at - for mounting toggle lever clamps M8 any angle in the room 396015 Joint 396016 Retaining block M6 Type 396015 Thread xmm Lengthmm Type 396016 Dimensionsmm Thread 0001  M6 20 60 0001  48 × 25 × 15 M6 Design and use: Design and use: - material aluminium - material aluminium - surface hard coated - surface hard coated - for fastening toggle clamps M4 - to attach components at an angle of 90° or for continuous twisting 396017 Retaining block M4 396018 Cube M6 Type 396017 Dimensionsmm Thread Type 396018 Dimensionsmm Thread Bore xmm 0001  37 × 15 × 15 M4 0001  20 × 20 × 20 M6 6 39/776 www.precitool.de
