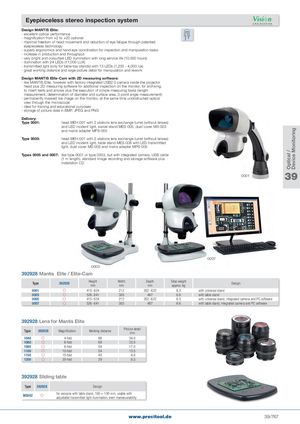

Optical / Device Monitoring Eyepieceless stereo inspection system Design MANTIS Elite: - excellent optical performance - magnification from ×2 to ×20 optional - maximal freedom of head movement and reduction of eye fatigue through patented eyepieceless technology - superb ergonomics and hand-eye coordination for inspection and manipulation tasks - increase in production and throughput - very bright and colourfast LED illumination with long service life (10,000 hours) - illumination with 24 LEDs (11,000 LUX) - transmitted light (only for table-top stands) with 13 LEDs (1,200 - 4,000 lux) - great working distance and large picture detail for manipulation and rework Design MANTIS Elite-Cam with 2D measuring software: - like MANTIS Elite, however with factory integrated USB2.0 camera inside the projector head plus 2D measuring software for additional inspection on the monitor, for archiving, to insert texts and arrows plus the execution of simple measuring tasks (length measurement, determination of diameter and surface area, 3-point angle measurement) - permanently masked live image on the monitor, at the same time unobstructed optical view through the microscope - ideal for training and educational purposes - storage of picture data in BMP, JPEG and PNG Delivery: Type 0001: head MEH-001 with 2 stations lens exchange turret (without lenses) and LED incident light, swivel stand MES-005, dust cover MS-003 and mains adapter MPS-005 Type 0003: head MEH-001 with 2 stations lens exchange turret (without lenses) and LED incident light, table stand MES-006 with LED transmitted light, dust cover MS-003 and mains adapter MPS-005 Types 0005 and 0007: like type 0001 or type 0003, but with integrated camera, USB cable (1 m length), standard image recording and storage software plus installation CD 0001 39 0007 0003 392928 Mantis Elite / Elite-Cam Type 392928 Heightmm Widthmm Depth Total weightmmapprox. kg Design 0001  415 - 624 212 352 - 622 6.3 with universal stand 0003  526 - 641 305 487 6.6 with table stand 0005  415 - 624 212 352 - 622 6.3 with universal stand, integrated camera and PC software 0007  526 - 641 305 487 6.6 with table stand, integrated camera and PC software 392928 Lens for Mantis Elite Type 392928 Magnification Working distance Picture detailmm 1040   4-fold 96 34.0 1060   6-fold 68 23.0 1080   8-fold 59 17.0 1100  10-fold 54 13.5 1150  15-fold 40  8.8 1200  20-fold 29  6.5 392928 Sliding table Type 392928 Design MS002  for versions with table stand, 100 × 100 mm, usable withadjustable transmitted light illumination, even manoeuvrability www.precitool.de 39/767
