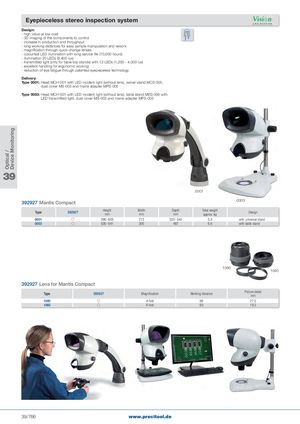

Optical / Device Monitoring Eyepieceless stereo inspection system Design: - high value at low cost - 3D imaging of the components to control - increase in production and throughput - long working distances for easy sample manipulation and rework - magnification through quick-change lenses - colourfast LED illumination with long service life (10,000 hours) - illumination 20 LEDs (9,400 lux) - transmitted light (only for table-top stands) with 13 LEDs (1,200 - 4,000 lux) - excellent handling for ergonomic working - reduction of eye fatigue through patented eyepieceless technology Delivery: Type 0001: Head MCH-001 with LED incident light (without lens), swivel stand MCS-005, dust cover MS-003 and mains adapter MPS-005 Type 0003: Head MCH-001 with LED incident light (without lens), table stand MES-006 with LED transmitted light, dust cover MS-003 and mains adapter MPS-005 39 0001 392927 Mantis Compact 0003 Type 392927 Heightmm Widthmm Depth Total weightmmapprox. kg Design 0001  396 - 605 213 335 - 545 5.4 with universal stand 0003  526 - 641 305 487 6.6 with table stand 1060 1040 392927 Lens for Mantis Compact Type 392927 Magnification Working distance Picture detailmm 1040  4-fold 96 27.5 1060  6-fold 93 19.2 39/766 www.precitool.de
