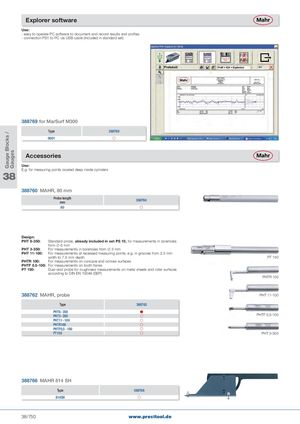

Gauge Blocks / Gauges Explorer software Use: - easy to operate PC software to document and record results and profiles - connection PS1 to PC via USB cable (Included in standard set) 388769 for MarSurf M300 Type 388769 0001  Accessories Use: E.g. for measuring points located deep inside cylinders 38 388760 MAHR, 80 mm Probe lengthmm 388760 80  Design: PHT 6-350: Standard probe, already included in set PS 10, for measurements in boreholes from x 6 mm PHT 3-350: For measurements in boreholes from x 3 mm PHT 11-100: For measurements at recessed measuring points, e.g. in grooves from 2.5 mm width to 7.5 mm depth PT 150 PHTR 100: For measurements on concave and convex surfaces PHTF 0.5-100: For measurements on tooth flanks PT 150: Dual-skid probe for roughness measurements on metal sheets and roller surfaces according to DIN EN 10049 (SEP) PHTR 100 388762 MAHR, probe PHT 11-100 Type 388762 PHT6 - 350  PHT3 - 350  PHTF 0,5-100 PHT11 - 100  PHTR100  PHTF0,5 - 100  PT150  PHT 3-350 388766 MAHR 814 SH Type 388766 814SH  38/750 www.precitool.de
