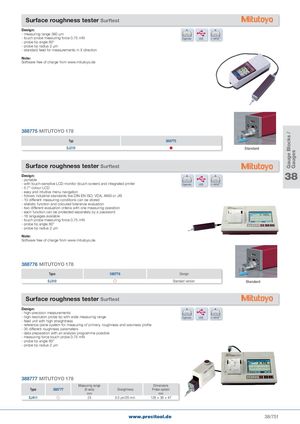

Gauge Blocks / Gauges Surface roughness tester Surftest Design: - measuring range 360 µm - touch probe measuring force 0.75 mN Digimatic USB U-WAVE® - probe tip angle 60° - probe tip radius 2 µm - standard feed for measurements in X direction Note: Software free of charge from www.mitutoyo.de 388775 MITUTOYO 178 Typ 388775 SJ210 Standard Surface roughness tester Surftest Design:- portable 38 - with touch-sensitive LCD monitor (touch screen) and integrated printer Digimatic USB U-WAVE® - 5.7" colour LCD - easy and intuitive menu navigation - follows industrial standards like DIN EN ISO, VDA, ANSI or JIS - 10 different measuring conditions can be stored - statistic function and coloured tolerance evaluation - two different evaluation criteria with one measuring operation - each function can be protected separately by a password - 16 languages available - touch probe measuring force 0.75 mN - probe tip angle 60° - probe tip radius 2 µm Note: Software free of charge from www.mitutoyo.de 388776 MITUTOYO 178 Type 388776 Design SJ310 Standard version Standard Surface roughness tester Surftest Design: - high-precision measurements - high-resolution probe tip with wide measuring range Digimatic USB U-WAVE® - feed unit with high straightness - reference plane system for measuring of primary, roughness and waviness profile - 35 different roughness parameters - data preparation with an analysis programme possible - measuring force touch probe 0.75 mN - probe tip angle 60° - probe tip radius 2 µm 388777 MITUTOYO 178 Measuring range Dimensions Type 388777 (X-axis) Straightness Probe system mm mm SJ411 25 0.3 µm/25 mm 128 × 36 × 47 www.precitool.de 38/751
