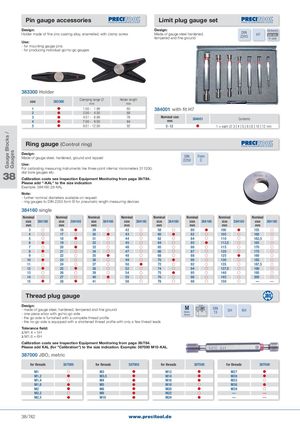

Общий каталог PRECITOOL - страница 747

Gauge Blocks / Gauges Pin gauge accessories Limit plug gauge set Design: Design:Holder made of fine zinc casting alloy, enamelled, with clamp screwMade of gauge steel hardened,tempered and fine groundDIN2245 DeliveredH7in case Use: - for mounting gauge pins - for producing individual go/no-go gauges 383300 Holder size 383300 Clamping range mm Holder lengthmm 1  1.00 -   1.99 60 384001 with fit H7 2  2.00 -   4.50 68 3  4.51 -   6.99 7647.00 -   9.5084 Nominal sizemm 384001 Contents 5  9.51 - 12.00 92 3 - 12  1 × each x 3 | 4 | 5 | 6 | 8 | 10 | 12 mm Ring gauge (Control ring) Design: Made of gauge steel, hardened, ground and lapped DIN Form2250C Use: For calibrating measuring instruments like three-point internal micrometers 311200, 38 dial bore gauges etc.Calibration costs see Inspection Equipment Monitoring from page 39/784. Please add "-KAL" to the size indication Example: 384160 28-KAL Note: - further nominal diameters available on request - ring gauges to DIN 2250 form B for pneumatic length measuring devices 384160 single Nominal Nominal Nominal Nominal Nominal Nominal Nominal Nominal size 384160 size 384160 size 384160 size 384160 size 384160 size 384160 size 384160 size 384160 mm mm mm mm mm mm mm mm 3  16  29  42  58  80  100  155  4  17  30  43  60  82  105  160  5  18  31  44  62  84  110  162,5  6  19  32  45  64  85  112,5  165  7  20  33  46  65  86  115  170  8  21  34  47  66  87  120  175  9  22  35  48  68  88  125  180  10  23  36  49  70  90  130  185  11  24  37  50  72  92  135  187,5  12  25  38  52  74  94  137,5  190  13  26  39  54  75  95  140  195  14  27  40  55  76  96  145  200  15  28  41  56  78  98  150  — — Thread plug gauge Design:- made of gauge steel, hardened, tempered and fine ground- one-piece arbor with go/no-go side M Metric60° DINMetric135H 6Hthread - the go-side is furnished with a complete thread profile - the no-go side is equipped with a shortened thread profile with only a few thread leads Tolerance field: ≤ M1.4 = 5H ≥ M1.6 = 6H Calibration costs see Inspection Equipment Monitoring from page 39/784. Please add KAL (for "Calibration") to the size indication. Example: 387000 M10-KAL. 387000 JBO, metric for threads 387000 for threads 387000 for threads 387000 for threads 387000 M1  M3  M12  M27  M1,2  M3,5  M14  M30  M1,4  M4  M16  M33  M1,6  M5  M18  M36  M2  M6  M20  M39  M2,2  M8  M22  — — M2,5  M10  M24  — — 38/742 www.precitool.de
