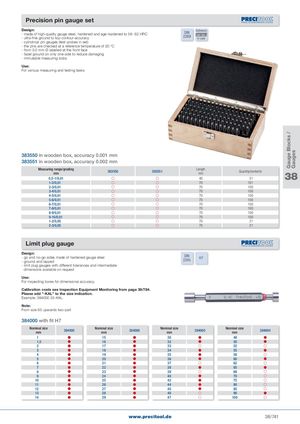

Gauge Blocks / Gauges Precision pin gauge set Design:- made of high-quality gauge steel, hardened and age-hardened to 58- 62 HRC DIN Delivered - ultra-fine ground to top contour-accuracy 2269 in case - cylindrical pin gauges (test probes in set) - the pins are checked at a reference temperature of 20 °C - from 3.0 mm Ø labelled at the front face - facet ground on only one side to reduce damaging - immutable measuring bobs Use: For various measuring and testing tasks 383550 in wooden box, accuracy 0.001 mm 383551 in wooden box, accuracy 0.002 mm Measuring range/gradingmm0,5-1/0,01 383550 383551 Lengthmm40 Quantity/contents 51 38 1-2/0,01   70 101 2-3/0,01   70 100 3-4/0,01   70 100 4-5/0,01   70 100 5-6/0,01   70 100 6-7/0,01   70 100 7-8/0,01   70 100 8-9/0,01   70 100 9-10/0,01   70 100 1-2/0,05   70  21 2-3/0,05   70  21 Limit plug gauge Design:- go and no-go sides made of hardened gauge steel- ground and lapped DIN2245 H7 - limit plug gauges with different tolerances and intermediate dimensions available on request Use: For inspecting bores for dimensional accuracy. Calibration costs see Inspection Equipment Monitoring from page 39/784. Please add "-KAL" to the size indication. Example: 384000 35-KAL Note: From size 65 upwards two-part 384000 with fit H7 Nominal sizemm 384000 Nominal sizemm 384000 Nominal sizemm 384000 Nominal sizemm 384000 1  15  30  48  1,5  16  32  50  2  17  33  52  3  18  34  55  4  19  35  58  5  20  36  60  6  21  37  62  7  22  38  65  8  23  39  68  9  24  40  70  10  25  42  75  11  26  44  80  12  27  45  85  13  28  46  90  14  29  47  100  www.precitool.de 38/741
