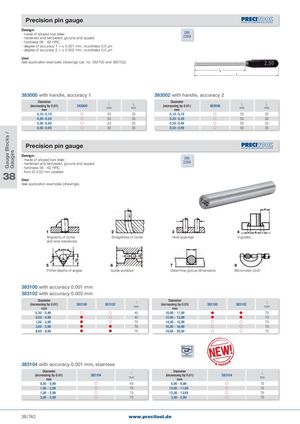

Gauge Blocks / Gauges Precision pin gauge Design:- made of alloyed tool steel- hardened and tempered, ground and lapped DIN2269 - hardness 58 - 62 HRC - degree of accuracy 1 = ± 0.001 mm, roundness 0.5 µm - degree of accuracy 2 = ± 0.002 mm, roundness 0.5 µm Use: See application examples (drawings cat. no. 383100 and 383102). 383000 with handle, accuracy 1 383002 with handle, accuracy 2 Diameter(increasing by 0.01)383000mm l 1mm l2mm Diameter(increasing by 0.01)mm 383000 l 1mm l2mm 0,10 - 0,19  53 33 0,10 - 0,19  53 33 0,20 - 0,29  53 33 0,20 - 0,29  53 33 0,30 - 0,49  53 33 0,30 - 0,49  53 33 0,50 - 0,99  53 33 0,50 - 0,99  53 33 Precision pin gauge Design:- made of alloyed tool steel- hardened and tempered, ground and lapped DIN2269 - hardness 58 - 62 HRC 38 - from Ø 3.00 mm labelledUse: See application examples (drawings). Angularity of bores Straighness of bores Hole spacings V-guides and bore tolerances Profile depths of angles Guide surfaces Determine groove dimensions Micrometer pitch 383100 with accuracy 0.001 mm 383102 with accuracy 0.002 mm Diameter(increasing by 0.01)mm383100 383102 lmm Diameter(increasing by 0.01)mm 383100 383102 lmm 0,30 - 0,49   40 10,00 - 11,99   70 0,50 - 0,99   40 12,00 - 13,99   70 1,00 - 2,99   70 14,00 - 15,99   70 3,00 - 5,99   70 16,00 - 18,99   70 6,00 - 9,99   70 19,00 - 20,00   70 EDELSTAHL R Rost INOX STAINLESS STEEL 383104 with accuracy 0.001 mm, stainless Diameter(increasing by 0.01)mm 383104 lmm Diameter(increasing by 0.01)mm 383104 lmm 0,50 - 0,99  40 6,00 - 9,99  70 1,00 - 2,99  70 10,00 - 11,99  70 1,00 - 2,99  70 12,00 - 13,99  70 3,00 - 5,99  70 3,00 - 5,99  70 38/740 www.precitool.de
