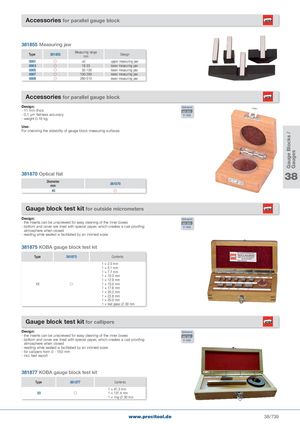

Общий каталог PRECITOOL - страница 744

Gauge Blocks / Gauges Accessories for parallel gauge block 381855 Measuring jaw Type 381855 Measuring rangemm Design 0001  all upper measuring jaw 0003  18-35  lower measuring jaw 0005  35-100  lower measuring jaw 0007  100-280  lower measuring jaw 0009  280-510  lower measuring jaw Accessories for parallel gauge block Design: Delivered - 11 mm thick - 0.1 µm flatness accuracy in case - weight 0.16 kg Use: For checking the slidability of gauge block measuring surfaces 381870 Optical flat 38 Diametermm 381870 45  Gauge block test kit for outside micrometers Design: Delivered - the inserts can be unscrewed for easy cleaning of the inner boxes - bottom and cover are lined with special paper, which creates a rust-proofing in case atmosphere when closed - reading while seated is facilitated by an inclined scale 381875 KOBA gauge block test kit Type 381875 Contents 1 × 2.5 mm 1 × 5.1 mm 1 × 7.7 mm 1 × 10.3 mm 1 × 12.9 mm 11  1 × 15.0 mm 1 × 17.6 mm 1 × 20.2 mm 1 × 22.8 mm 1 × 25.0 mm 1 × test glass  30 mm Gauge block test kit for callipers Design: Delivered - the inserts can be unscrewed for easy cleaning of the inner boxes - bottom and cover are lined with special paper, which creates a rust-proofing in case atmosphere when closed - reading while seated is facilitated by an inclined scale - for callipers from 0 - 150 mm - incl. test report 381877 KOBA gauge block test kit Type 381877 Contents 1 × 41.3 mm 03  1 × 131.4 mm 1 × ring  30 mm www.precitool.de 38/739
