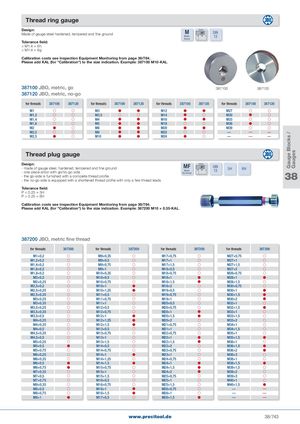

Gauge Blocks / Gauges Thread ring gauge Design:Made of gauge steel hardened, tempered and fine ground M Metric60° DIN Metric 13 thread Tolerance field: < M1.4 = 6h > M1.4 = 6g Calibration costs see Inspection Equipment Monitoring from page 39/784. Please add KAL (for "Calibration") to the size indication. Example: 387100 M10-KAL. 387100 JBO, metric, go 387100 387120 387120 JBO, metric, no-go for threads 387100 387120 for threads 387100 387120 for threads 387100 387120 for threads 387100 387120 M1   M3   M12   M27   M1,2   M3,5   M14   M30   M1,4   M4   M16   M33   M1,6   M5   M18   M36   M2   M6   M20   M39   M2,2   M8   M22   — — — M2,5   M10   M24   — — — Thread plug gauge Design:- made of gauge steel, hardened, tempered and fine ground- one-piece arbor with go/no-go side MF Metric60° DINMetric135H 6Hfine thread- the go-side is furnished with a complete thread profile- the no-go side is equipped with a shortened thread profile with only a few thread leads38 Tolerance field: P < 0.25 = 5H P > 0.25 = 6H Calibration costs see Inspection Equipment Monitoring from page 39/784. Please add KAL (for "Calibration") to the size indication. Example: 387200 M10 × 0.35-KAL. 387200 JBO, metric fine thread for threads 387200 for threads 387200 for threads 387200 for threads 387200 M1×0,2  M9×0,35  M17×0,75  M27×0,75  M1,2×0,2  M9×0,5  M17×1  M27×1  M1,4×0,2  M9×0,75  M17×1,5  M27×1,5  M1,6×0,2  M9×1  M18×0,5  M27×2  M1,8×0,2  M10×0,35  M18×0,75  M28×0,75  M2×0,2  M10×0,5  M18×1  M28×1  M2×0,25  M10×0,75  M18×1,5  M28×1,5  M2,5×0,2  M10×1  M18×2  M30×0,75  M2,5×0,25  M10×1,25  M19×0,5  M30×1  M2,5×0,35  M11×0,5  M19×0,75  M30×1,5  M3×0,25  M11×0,75  M19×1  M30×2  M3×0,35  M11×1  M20×0,5  M32×1  M3,5×0,25  M12×0,5  M20×0,75  M32×1,5  M3,5×0,35  M12×0,75  M20×1  M33×1  M3,5×0,5  M12×1  M20×1,5  M33×1,5  M4×0,25  M12×1,25  M20×2  M33×2  M4×0,35  M12×1,5  M21×0,75  M34×1  M4×0,5  M13×0,5  M21×1  M34×1,5  M4,5×0,35  M13×0,75  M22×0,75  M35×1  M4,5×0,5  M13×1  M22×1  M35×1,5  M5×0,25  M13×1,5  M22×1,5  M36×1  M5×0,5  M14×0,5  M22×2  M36×1,5  M5×0,75  M14×0,75  M23×0,75  M36×2  M6×0,25  M14×1  M23×1  M36×3  M6×0,35  M14×1,25  M24×0,75  M38×1  M6×0,5  M14×1,5  M24×1  M38×1,5  M6×0,75  M15×0,75  M24×1,5  M39×1,5  M7×0,35  M15×1  M24×2  M39×2  M7×0,5  M15×1,5  M25×0,75  M39×3  M7×0,75  M16×0,5  M25×1  M40×1  M8×0,35  M16×0,75  M25×1,5  M40×1,5  M8×0,5  M16×1  M26×0,75  — — M8×0,75  M16×1,5  M26×1  — — M8×1  M17×0,5  M26×1,5  — — www.precitool.de 38/743
