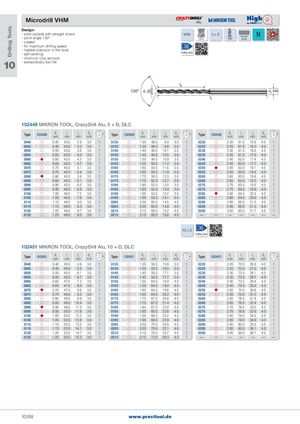

Microdrill VHM Drilling Tools Design: - solid carbide with straight shank - point angle 130° VHM coated 5×D 130° Straight shank N - coated - for maximum drilling speed - highest precision in the bore Cutting data - self-centring - minimum chip removal 10 - extraordinary tool life 130° d1 (k5) d2 (h6) 102449 MIKRON TOOL, CrazyDrill Alu, 5 × D, DLC d1 l1 l2 d2 d1 l1 l2 d2 d1 l1 l2 d2 Type 102449 Type 102449 Type 102449 mm mm mm mm mm mm mm mm mm mm mm mm 0040  0.40 43.0 2.9 3.0 1 0130  1.30 48.0 9.4 3.0 1 0220  2.20 61.5 15.9 4.0 1 0045  0.45 43.0 3.3 3.0 1 0135  1.35 48.0 9.8 3.0 1 0225  2.25 61.5 16.3 4.0 1 0050  0.50 43.0 3.6 3.0 1 0140  1.40 48.0 10.1 3.0 1 0230  2.30 61.5 16.6 4.0 1 0055  0.55 43.0 4.0 3.0 1 0145  1.45 49.0 10.5 3.0 1 0235  2.35 61.5 17.0 4.0 1 0060  0.60 43.0 4.3 3.0 1 0150  1.50 49.0 10.9 3.0 1 0240  2.40 62.0 17.4 4.0 1 0065  0.65 43.0 4.7 3.0 1 0155  1.55 50.5 11.2 3.0 1 0245  2.45 62.0 17.7 4.0 1 0070  0.70 45.0 5.1 3.0 1 0160  1.60 50.5 11.6 3.0 1 0250  2.50 62.0 18.1 4.0 1 0075  0.75 45.0 5.4 3.0 1 0165  1.65 50.5 11.9 3.0 1 0255  2.55 63.0 18.4 4.0 1 0080  0.80 45.0 5.8 3.0 1 0170  1.70 50.5 12.3 3.0 1 0260  2.60 63.0 18.8 4.0 1 0085  0.85 45.0 6.1 3.0 1 0175  1.75 52.0 12.7 3.0 1 0265  2.65 63.0 19.2 4.0 1 0090  0.90 45.0 6.5 3.0 1 0180  1.80 52.0 13.0 3.0 1 0270  2.70 63.0 19.5 4.0 1 0095  0.95 46.0 6.9 3.0 1 0185  1.85 52.0 13.4 3.0 1 0275  2.75 64.5 19.9 4.0 1 0100  1.00 46.0 7.2 3.0 1 0190  1.90 53.5 13.7 3.0 1 0280  2.80 64.5 20.3 4.0 1 0105  1.05 46.0 7.6 3.0 1 0195  1.95 53.5 14.1 3.0 1 0285  2.85 64.5 20.6 4.0 1 0110  1.10 46.0 8.0 3.0 1 0200  2.00 60.0 14.5 4.0 1 0290  2.90 65.0 21.0 4.0 1 0115  1.15 48.0 8.3 3.0 1 0205  2.05 60.0 14.8 4.0 1 0295  2.95 65.0 21.3 4.0 1 0120  1.20 48.0 8.7 3.0 1 0210  2.10 60.0 15.2 4.0 1 0300  3.00 65.0 21.7 4.0 1 0125  1.25 48.0 9.0 3.0 1 0215  2.15 60.0 15.6 4.0 1 — — — — — — — 10 × D Cutting data 102451 MIKRON TOOL, CrazyDrill Alu, 10 × D, DLC d1 l1 l2 d2 d1 l1 l2 d2 d1 l1 l2 d2 Type 102451 Type 102451 Type 102451 mm mm mm mm mm mm mm mm mm mm mm mm 0040  0.40 45.0 4.9 3.0 1 0130  1.30 55.5 15.9 3.0 1 0220  2.20 72.0 26.9 4.0 1 0045  0.45 45.0 5.5 3.0 1 0135  1.35 55.5 16.5 3.0 1 0225  2.25 72.0 27.5 4.0 1 0050  0.50 45.0 6.1 3.0 1 0140  1.40 55.5 17.1 3.0 1 0230  2.30 73.5 28.1 4.0 1 0055  0.55 45.0 6.7 3.0 1 0145  1.45 55.5 17.7 3.0 1 0235  2.35 73.5 28.7 4.0 1 0060  0.60 47.0 7.3 3.0 1 0150  1.50 64.5 18.4 4.0 1 0240  2.40 73.5 29.4 4.0 1 0065  0.65 47.0 8.0 3.0 1 0155  1.55 64.5 19.0 4.0 1 0245  2.45 75.0 30.0 4.0 1 0070  0.70 47.0 8.6 3.0 1 0160  1.60 64.5 19.6 4.0 1 0250  2.50 75.0 30.6 4.0 1 0075  0.75 49.0 9.2 3.0 1 0165  1.65 64.5 20.2 4.0 1 0255  2.55 75.0 31.2 4.0 1 0080  0.80 49.0 9.8 3.0 1 0170  1.70 67.0 20.8 4.0 1 0260  2.60 76.5 31.8 4.0 1 0085  0.85 49.0 10.4 3.0 1 0175  1.75 67.0 21.4 4.0 1 0265  2.65 76.5 32.4 4.0 1 0090  0.90 49.0 11.0 3.0 1 0180  1.80 67.0 22.0 4.0 1 0270  2.70 76.5 33.0 4.0 1 0095  0.95 50.5 11.6 3.0 1 0185  1.85 68.5 22.6 4.0 1 0275  2.75 78.0 33.6 4.0 1 0100  1.00 50.5 12.2 3.0 1 0190  1.90 68.5 23.2 4.0 1 0280  2.80 78.0 34.3 4.0 1 0105  1.05 52.0 12.8 3.0 1 0195  1.95 68.5 23.9 4.0 1 0285  2.85 78.0 34.9 4.0 1 0110  1.10 52.0 13.5 3.0 1 0200  2.00 70.0 24.5 4.0 1 0290  2.90 80.0 35.5 4.0 1 0115  1.15 53.5 14.1 3.0 1 0205  2.05 70.0 25.1 4.0 1 0295  2.95 80.0 36.1 4.0 1 0120  1.20 53.5 14.7 3.0 1 0210  2.10 70.0 25.7 4.0 1 0300  3.00 80.0 36.7 4.0 1 0125  1.25 53.5 15.3 3.0 1 0215  2.15 72.0 26.3 4.0 1 — — — — — — — 10/68 www.precitool.de
