- special drill bit geometry for low heat generation and highest drilling speeds VHM 50 × D ICS

- cutting edge protection prevents break-outs 140° - flute geometry for short chips - flexible centre part - robust unified shank Ø 3 - h5

- deep-hole boring with integrated cooling Cutting data - optimal cooling and precise chip evacuation 10

Note: Drill pilot hole with 102412 Delivery only in specified PU Minimum coolant pressure: Speed ≤ 10,000 rpm. = 15 bar > 10.000 rpm. = 30 bar

d 1 (-0,003 -0,006)

l 2

l 4

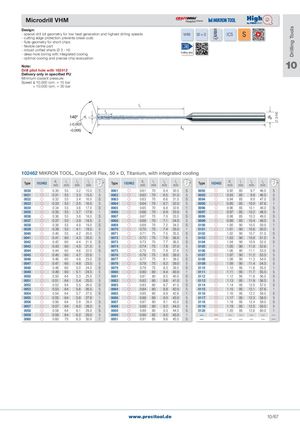

102462 MIKRON TOOL, CrazyDrill Flex, 50 × D, Titanium, with integrated cooling

Type	102462	d1 mm	l1 mm	l2 mm	l4 mm		Type	102462	d1 mm	l1 mm	l2 mm	l4 mm		Type	102462	d1 mm	l1 mm	l2 mm	l4 mm
0030		0�30	53	3�2	15�0	1	0061		0�61	70	6�4	30�5	5	0092		0�92	85	9�7	46�0	5
0031		0�31	53	3�3	15�5	5	0062		0�62	70	6�5	31�0	5	0093		0�93	85	9�8	46�5	5
0032		0�32	53	3�4	16�0	5	0063		0�63	70	6�6	31�5	5	0094		0�94	85	9�9	47�0	5
0033		0�33	53	3�5	16�5	5	0064		0�64	70	6�7	32�0	5	0095		0�95	85	10�0	47�6	1
0034		0�34	53	3�6	17�0	5	0065		0�65	70	6�8	32�6	1	0096		0�96	85	10�1	48�0	5
0035		0�35	53	3�7	17�6	1	0066		0�66	70	6�9	33�0	5	0097		0�97	85	10�2	48�5	5
0036		0�36	53	3�8	18�0	5	0067		0�67	70	7�0	33�5	5	0098		0�98	85	10�3	49�0	5
0037		0�37	53	3�9	18�5	5	0068		0�68	70	7�1	34�0	5	0099		0�99	85	10�4	49�5	5
0038		0�38	53	4�0	19�0	5	0069		0�69	70	7�2	34�5	5	0100		1�00	90	10�5	50�0	1
0039		0�39	53	4�1	19�5	5	0070		0�70	75	7�4	35�0	1	0101		1�01	90	10�6	50�5	5
0040		0�40	53	4�2	20�0	1	0071		0�71	75	7�5	35�5	5	0102		1�02	90	10�7	51�0	5
0041		0�41	60	4�3	20�5	5	0072		0�72	75	7�6	36�0	5	0103		1�03	90	10�8	51�5	5
0042		0�42	60	4�4	21�0	5	0073		0�73	75	7�7	36�5	5	0104		1�04	90	10�9	52�0	5
0043		0�43	60	4�5	21�5	5	0074		0�74	75	7�8	37�0	5	0105		1�05	90	11�0	52�6	1
0044		0�44	60	4�6	22�0	5	0075		0�75	75	7�9	37�6	1	0106		1�06	90	11�1	53�0	5
0045		0�45	60	4�7	22�6	1	0076		0�76	75	8�0	38�0	5	0107		1�07	90	11�2	53�5	5
0046		0�46	60	4�8	23�0	5	0077		0�77	75	8�1	38�5	5	0108		1�08	90	11�3	54�0	5
0047		0�47	60	4�9	23�5	5	0078		0�78	75	8�2	39�0	5	0109		1�09	90	11�4	54�5	5
0048		0�48	60	5�0	24�0	5	0079		0�79	75	8�3	39�5	5	0110		1�10	95	11�6	55�0	1
0049		0�49	60	5�1	24�5	5	0080		0�80	80	8�4	40�0	1	0111		1�11	95	11�7	55�5	5
0050		0�50	64	5�3	25�0	1	0081		0�81	80	8�5	40�5	5	0112		1�12	95	11�8	56�0	5
0051		0�51	64	5�4	25�5	5	0082		0�82	80	8�6	41�0	5	0113		1�13	95	11�9	56�5	5
0052		0�52	64	5�5	26�0	5	0083		0�83	80	8�7	41�5	5	0114		1�14	95	12�0	57�0	5
0053		0�53	64	5�6	26�5	5	0084		0�84	80	8�8	42�0	5	0115		1�15	95	12�1	57�6	1
0054		0�54	64	5�7	27�0	5	0085		0�85	80	8�9	42�6	1	0116		1�16	95	12�2	58�0	5
0055		0�55	64	5�8	27�6	1	0086		0�86	80	9�0	43�0	5	0117		1�17	95	12�3	58�5	5
0056		0�56	64	5�9	28�0	5	0087		0�87	80	9�1	43�5	5	0118		1�18	95	12�4	59�0	5
0057		0�57	64	6�0	28�5	5	0088		0�88	80	9�2	44�0	5	0119		1�19	95	12�5	59�5	5
0058		0�58	64	6�1	29�0	5	0089		0�89	80	9�3	44�5	5	0120		1�20	95	12�6	60�0	1
0059		0�59	64	6�2	29�5	5	0090		0�90	85	9�5	45�0	1	—	—	—	—	—	—	—
0060		0�60	70	6�3	30�0	1	0091		0�91	85	9�6	45�5	5	—	—	—	—	—	—	—
