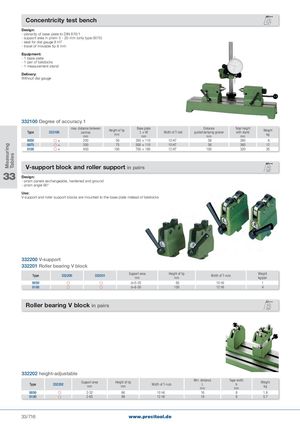

Measuring Tables Concentricity test bench Design: - planarity of base plate to DIN 876/1 - support area in prism 5 - 20 mm (only type 0075) - seat for dial gauge 8 H7 - travel of movable tip 8 mm Equipment: - 1 base plate - 1 pair of tailstocks - 1 measurement stand Delivery: Without dial gauge 332100 Degree of accuracy 1 Type 332100 max. distance betweencentresmmHeight of tipmm Base plateL×Wmm Distance Total heightWidth of T-slotguide/clamping groovewith standmmmmWeightkg 0050 + 200 50 350 × 110 10 H7 58 260 8 0075 + 350 75 500 × 110 10 H7 58 260 12 0100 + 450 100 700 × 180 12 H7 100 320 35 V-support block and roller support in pairs 33 Design: - prism panels exchangeable, hardened and ground - prism angle 90° Use: V-support and roller support blocks are mounted to the base plate instead of tailstocks 332200 V-support 332201 Roller bearing V block Type 332200 332201 Support areamm Height of tipmm Width of T-nuts Weightkg/pair 0050   d=5-25 65 10 h6 1 0100   d=8-50 100 12 h6 4 Roller bearing V block in pairs 332202 height-adjustable Type 332202 Support areamm Height of tipmm Width of T-nuts Min. distanceLmm Tape widthbmm Weightkg 0050  2-32 66 10 h6 16 8 1.8 0100  2-65 99 12 h6 19 8 5.7 33/716 www.precitool.de
