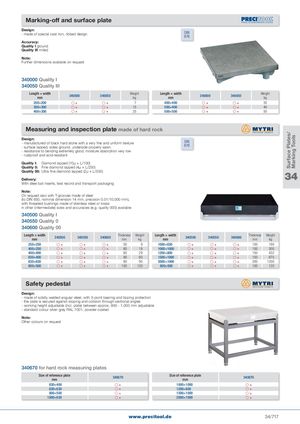

Surface Plates/ Marking Tools Marking-off and surface plate Design:- made of special cast iron, ribbed design DIN876 Accuracy: Quality I ground Quality III milled Note: Further dimensions available on request 340000 Quality I 340050 Quality III Length × widthmm 340000 340050 Weightkg Length × widthmm 340000 340050 Weightkg 200×200 + + 7 400×400 + + 35 300×300 + + 15 500×400 + + 40 400×300 + + 25 500×500 + + 50 Measuring and inspection plate made of hard rock Design:- manufactured of black hard stone with a very fine and uniform texture- surface lapped, sides ground, underside properly sawnDIN876 - resistance to bending extremely good, moisture absorption very low - rustproof and acid-resistant Quality I: Diamond lapped (10µ + L/100) Quality 0: Fine diamond lapped (4µ + L/250) Quality 00: Ultra fine diamond lapped (2µ + L/500) Delivery: 34 With steel ball inserts, test record and transport packaging Note: On request also with T-grooves made of steel (to DIN 650, nominal dimension 14 mm, precision 0.01/10,000 mm), with threaded bushings made of stainless steel or brass in other (intermediate) sizes and accuracies (e.g. quality 000) available 340500 Quality I 340550 Quality 0 340600 Quality 00 Length × widthmm 340500 340550 340600 Thickness Weightmmkg Length × widthmm 340500 340550 340600 Thickness Weightmmkg 250×250 + + + 50 9 1000×630 + + + 100  190 400×250 + + + 60 18 1000×1000 + + + 100  300 400×400 + + + 60 29 1200×800 + + + 150  432 630×400 + + + 80 60 1500×1000 + + + 150  675 630×630 + + + 80 95 2000×1000 + + + 200 1200 800×500 + + + 100 120  800×500 + + + 100  120 Safety pedestal Design: - made of solidly welded angular steel, with 3-point bearing and tipping protection - the plate is secured against slipping and collision through sectional angles - working height adjustable (incl. plate) between approx. 900 - 1,000 mm adjustable - standard colour silver grey RAL 7001, powder-coated Note: Other colours on request 340670 for hard rock measuring plates Size of reference platemm 340670 Size of reference platemm 340670 630×400 + 1000×1000 + 630×630 + 1200×800 + 800×500 + 1500×1000 + 1000×630 + 2000×1000 + www.precitool.de 34/717
