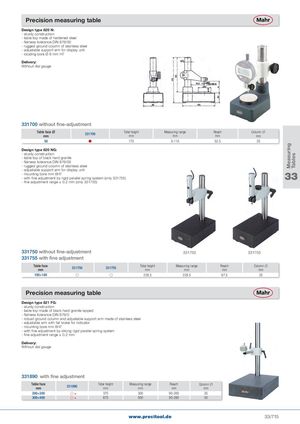

Measuring Tables Precision measuring table Design type 820 N: - sturdy construction - table top made of hardened steel - flatness tolerance DIN 876/00 - rugged ground column of stainless steel - adjustable support arm for display unit - locating bore Ø 8 mm H7 Delivery: Without dial gauge 331700 without fine-adjustment Table face mm 331700 Total height Measuring range Reachmmmmmm Column mm 50  175 0-110 52.5 25 Design type 820 NG: - sturdy construction - table top of black hard granite - flatness tolerance DIN 876/00 - rugged ground column of stainless steel - adjustable support arm for display unit - mounting bore mm 8H7- with fine adjustment by rigid parallel spring system (only 331755) 33 - fine adjustment range ± 0.2 mm (only 331755) 331750 without fine-adjustment 331750 331755 331755 with fine adjustment Table facemm 331750 331755 Total height Measuring range Reachmmmmmm Column mm 100×160   228.5 228.5 67.5 25 Precision measuring table Design type 821 FG: - sturdy construction - table top made of black hard granite lapped - flatness tolerance DIN 876/0 - robust ground column and adjustable support arm made of stainless steel - adjustable arm with fall brake for indicator - mounting bore mm 8H7 - with fine adjustment by strong rigid parallel spring system - fine adjustment range ± 0.2 mm Delivery: Without dial gauge 331890 with fine adjustment Table facemm 331890 Total height Measuring range Reachmmmmmm Column mm 200×300 + 375 300 90-200 35 300×400 + 675 500 95-280 50 www.precitool.de 33/715
