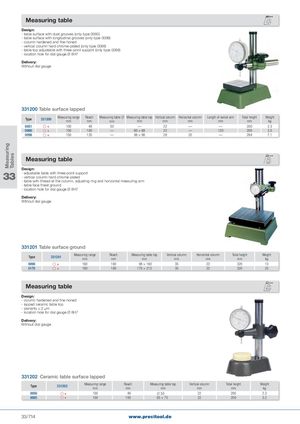

Measuring Tables Measuring table Design: - table surface with dust grooves (only type 0060) - table surface with longitudinal grooves (only type 0098) - column hardened and fine-honed - vertical column hard chrome-plated (only type 0098) - table top adjustable with three-point support (only type 0098) - location hole for dial gauge Ø 8H7 Delivery: Without dial gauge 331200 Table surface lapped Type 331200 Measuring rangemm Reachmm Measuring table  Measuring table top Vertical column Horizontal column Length of swivel armmmmmmmmmmmTotal heightmmWeightkg 0051 + 100  49 50 — 22 — — 200 2.3 0060 + 100 100 — 60 × 68 22 — 120 200 3.5 0098 + 150 135 — 98 × 98 28 20 — 284 7.1 Measuring table Design: 33 - adjustable table with three-point support- vertical column hard chrome-plated - table with thread at the column, adjusting ring and horizontal measuring arm - table face finest ground - location hole for dial gauge Ø 8H7 Delivery: Without dial gauge 331201 Table surface ground Type 331201 Measuring rangemm Reachmm Measuring table top Vertical column Horizontal column Total heightmmmmmmmm Weightkg 0098 + 160 180   98 × 180 35 22 320 13 0170 + 160 180 170 × 215 35 22 320 23 Measuring table Design: - column hardened and fine-honed - lapped ceramic table top - planarity ≤ 2 µm - location hole for dial gauge Ø 8H7 Delivery: Without dial gauge 331202 Ceramic table surface lapped Type 331202 Measuring rangemm Reachmm Measuring table top Vertical column Total heightmmmmmm Weightkg 0050 + 100 49  50 22 200 2.3 0065 + 100 100 65 × 75 22 200 3.2 33/714 www.precitool.de
