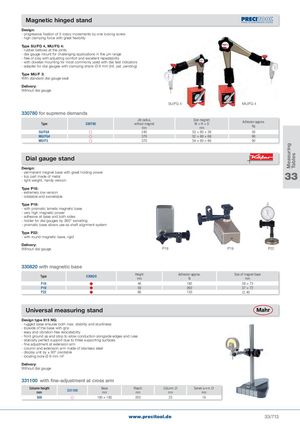

Measuring Tables Magnetic hinged stand Design: - progressive fixation of 5 rotary movements by one locking screw - high clamping force with great flexibility Type SU/FG 4, MU/FG 4: - rubber bellows at the joints - dial gauge mount for challenging applications in the µm range - free of play with adjusting comfort and excellent repeatability - with dovetail mounting for most commonly used with dial test indicators - adapter for dial gauges with clamping shank Ø 8 mm (Int. pat. pending) Type MU/F 3: With standard dial gauge seat Delivery: Without dial gauge SU/FG 4 MU/FG 4 330780 for supreme demands Jib radius,Type330780without magnetmmSize magnet:W×H×Dmm Adhesion approx.kg SU/FG4  245 53 × 60 × 36 50 MU/FG4  370 52 × 60 × 68 90 MU/F3  370 54 × 60 × 86 90 Dial gauge stand Design: - permanent magnet base with great holding power- top part made of metal- light-weight, handy version 33 Type P18: - extremely low version - rotatable and swivellable Type P19: - with prismatic lamella magnetic base - very high magnetic power - adhesive at base and both sides - holder for dial gauges by 360° swivelling - prismatic base allows use as shaft alignment system Type P22: - with round magnetic base, rigid Delivery: Without dial gauge P18 P19 P22 330820 with magnetic base Type 330820 Height Adhesion approx. Size of magnet basemmNmm P18  46 180 38 × 73 P19  59 260 37 × 72 P22  66 130  40 Universal measuring stand Design type 815 NG: - rugged base ensures both max. stability and sturdiness - topside of the base with grip - easy and vibration-free relocatability - front ground as end stop to allow conduction alongside edges and rules - statically perfect support due to three supporting surfaces - fine adjustment at extension arm - column and extension arm made of stainless steel - display unit by ± 90° pivotable - locating bore Ø 8 mm H7 Delivery: Without dial gauge 331100 with fine-adjustment at cross arm Column heightmm 331100 Basemm Reach Column  Swivel arm mmmmmm 500  190 × 180 200 25 18 www.precitool.de 33/713
