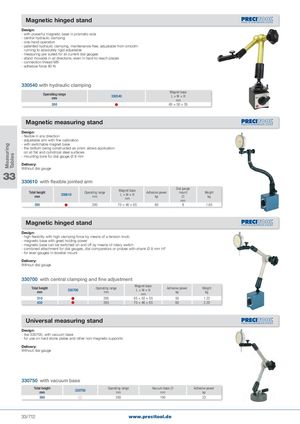

Measuring Tables Magnetic hinged stand Design: - with powerful magnetic base in prismatic sole - central hydraulic clamping - one-hand operation - patented hydraulic clamping, maintenance-free, adjustable from smooth- running to absolutely rigid adjustable - measuring jaw suited for all current dial gauges - stand movable in all directions, even in hard-to-reach places - connection thread M8 - adhesive force 80 N 330540 with hydraulic clamping Operating rangemm 330540 Magnet baseL×W×Hmm 260  60 × 50 × 55 Magnetic measuring stand Design: - flexible in any direction - adjustable arm with fine calibration - with switchable magnet base - the bottom being constructed as prism allows application on all flat and cylindrical steel surfaces - mounting bore for dial gauge Ø 8 mm Delivery: Without dial gauge 33 330610 with flexible jointed arm Total heightmm 330610 Operating rangemm Magnet baseL×W×Hmm Dial gaugeAdhesive powermountkpmmWeightkg 350  200 70 × 46 × 65 60 8 1.85 Magnetic hinged stand Design: - high flexibility with high clamping force by means of a tension knob - magnetic base with great holding power - magnetic base can be switched on and off by means of rotary switch - combined attachment for dial gauges, dial comparators or probes with shank Ø 8 mm H7 - for lever gauges in dovetail mount Delivery: Without dial gauge 330700 with central clamping and fine adjustment Total heightmm 330700 Operating rangemm Magnet baseL×W×Hmm Adhesive powerkp Weightkg 310  200 65 × 50 × 55 50 1.22 430  285 70 × 46 × 65 60 2.20 Universal measuring stand Design: - like 330700, with vacuum base - for use on hard stone plates and other non-magnetic supports Delivery: Without dial gauge 330750 with vacuum base Total heightmm 330750 Operating rangemm Vacuum base  Adhesive powermmkp 390  285 100 23 33/712 www.precitool.de
