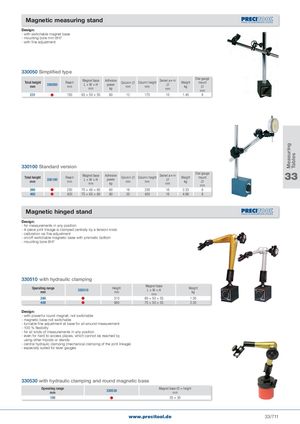

Measuring Tables Magnetic measuring stand Design: - with switchable magnet base - mounting bore mm 8H7 - with fine adjustment 330050 Simplified type Total heightmm 330050 Reachmm Magnet baseL×W×HmmAdhesivepowerkpColumn mmColumn heightmmSwivel armmmWeightkgDial gaugemountmm 231  150 63 × 50 × 55 60 12 175 10 1.45 8 330100 Standard version Total heightmm 330100 Reachmm Magnet baseL×W×HmmAdhesivepowerkpColumn mmColumn heightmmSwivel armmmWeightkgDial gaugemountmm 33 260  230 70 × 46 × 65 60 16 230 16 2.33 8 460  420 75 × 60 × 80 80 20 420 16 4.98 8 Magnetic hinged stand Design: - for measurements in any position - 4-piece joint linkage is clamped centrally by a tension knob - calibration via fine adjustment - on/off-switchable magnetic base with prismatic bottom - mounting bore 8H7 330510 with hydraulic clamping Operating rangemm 330510 Heightmm Magnet baseL×W×Hmm Weightkg 260  310 60 × 50 × 55 1.50 400  480 75 × 50 × 55 2.20 Design: - with powerful round magnet; not switchable - magnetic base not switchable - turnable fine adjustment at base for all-around measurement - 100 % flexibility - for all kinds of measurements in any position - even for hard to access places, which cannot be reached by using other tripods or stands - central hydraulic clamping (mechanical clamping of the joint linkage) - especially suited for lever gauges 330530 with hydraulic clamping and round magnetic base Operating rangemm 330530 Magnet base Ø × heightmm 150  35 × 30 www.precitool.de 33/711
