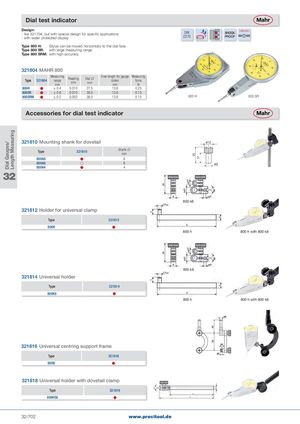

Dial Gauges/ Length Measuring Dial test indicator Design:- like 321704, but with special design for specific applications DIN calibrated - with water protected display 2270 Type 800 H: Stylus can be moved horizontally to the dial face Type 800 SR: with large measuring range Type 800 SRM: with high accuracy 321804 MAHR 800 Type 321804 MeasuringrangemmReadingmmDial mm Free length for gauge MeasuringslidesforcemmN 800H  ± 0.4 0.010 27.5 13.6 0.25 800SR  ± 0.8 0.010 38.0 13.6 0.15 800SRM  ± 0.2 0.002 38.0 13.6 0.15 800 H 800 SR Accessories for dial test indicator 321810 Mounting shank for dovetail Type 321810 Shank mm 800A8  8 800A6  6 800A4  4 32 800 k8 321812 Holder for universal clamp Type 321812 800H  800 h 800 h with 800 k8 800 k8 321814 Universal holder Type 321814 800K8  800 h 800 h with 800 k8 321816 Universal centring support frame Type 321816 800B  321818 Universal holder with dovetail clamp Type 321818 800HS8  32/702 www.precitool.de
