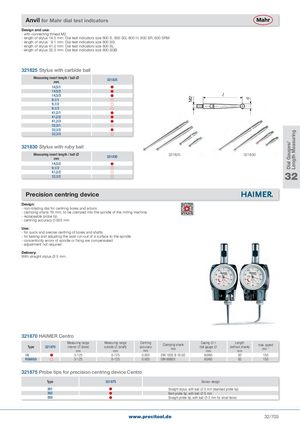

Dial Gauges/ Length Measuring Anvil for Mahr dial test indicators Design and use: - with connecting thread M2 - length of stylus 14.5 mm: Dial test indicators size 800 S, 800 SG, 800 H, 800 SR, 800 SRM - length of stylus   9.1 mm: Dial test indicators size 800 SG - length of stylus 41.2 mm: Dial test indicators size 800 SL - length of stylus 32.3 mm: Dial test indicators size 800 SGB 321825 Stylus with carbide ball Measuring insert length / ball mm 321825 14,5/1  14,5/2  14,5/3  9,1/1  9,1/2  9,1/3  41,2/1  41,2/2  41,2/3  32,3/1  32,3/2  32,3/3  321830 Stylus with ruby ball Measuring insert length / ball mm 321830 321825 321830 14,5/2  9,1/2  41,2/2 32,3/2 32 Precision centring device Design: - non-rotating dial for centring bores and arbors - clamping shank 16 mm, to be clamped into the spindle of the milling machine - replaceable probe tip - centring accuracy 0.003 mm Use: - for quick and precise centring of bores and shafts - for testing and adjusting the axial run-out of a surface to the spindle - concentricity errors of spindle or fixing are compensated - adjustment not required Delivery: With straight stylus Ø 5 mm. 321870 HAIMER Centro Measuring rangeType321870interior x (bore)mmMeasuring rangeoutside x (shaft)mmCentringaccuracymmClamping shankmmCasing x /dial gauge xmmLength(without shank)mmmax. speedmin -1 16  3-125 0-125 0.003 DIN 1835 B 16.00 80/60 92 150 HSKA50  3-125 0-125 0.003 DIN 69893 80/60 92 150 321875 Probe tips for precision centring device Centro Type 321875 Sensor design 301  Straight stylus, with ball  5 mm (standard probe tip) 302  Bent probe tip, with ball  5 mm 303  Straight probe tip, with ball  2 mm for small bores www.precitool.de 32/703
