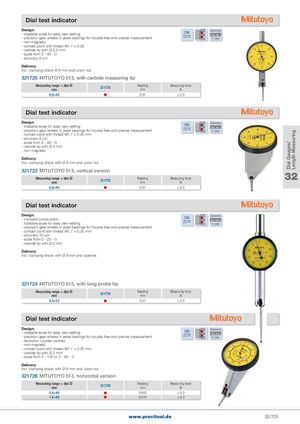

Общий каталог PRECITOOL - страница 706

Dial Gauges/ Length Measuring Dial test indicator Design:- rotatable scale for easy zero-setting DIN Delivered - precision gear wheels in jewel bearings for trouble-free and precise measurement 2270 in case - non-magnetic - contact point with thread M1.7 × 0.35 - carbide tip with Ø 2.0 mm - scale from 0 - 40 - 0 - accuracy 8 µm Delivery: Incl. clamping shank Ø 8 mm and union nut. 321720 MITUTOYO 513, with carbide measuring tip Measuring range × dial mm 321720 Reading Measuring forcemmN 0,8×40  0.01 ≤ 0.3 Dial test indicator Design:- rotatable scale for easy zero-setting- precision gear wheels in jewel bearings for trouble-free and precise measurementDINDelivered2270in case - contact point with thread M1.7 × 0.35 mm - accuracy 8 µm - scale from 0 - 40 - 0 - carbide tip with Ø 2 mm - non-magnetic Delivery: Incl. clamping shank with Ø 8 mm and union nut. 321722 MITUTOYO 513, vertical version Measuring range × dial mm 321722 Reading Measuring forcemmN 32 0,8×40  0.01 ≤ 0.3 Dial test indicator Design:- compact construction- rotatable scale for easy zero-setting DIN Delivered2270in case - precision gear wheels in jewel bearings for trouble-free and precise measurement - contact point with thread M1.7 × 0.35 mm - accuracy 10 µm - scale from 0 - 25 - 0 - carbide tip with Ø 2 mm Delivery: Incl. clamping shank with Ø 8 mm and spanner. 321724 MITUTOYO 513, with long probe tip Measuring range × dial mm 321724 Reading Measuring forcemmN 0,5×33  0.01 ≤ 0.3 Dial test indicator Design:- rotatable scale for easy zero-setting- precision gear wheels in jewel bearings for trouble-free and precise measurementDINDelivered2270in case - revolution counter centred - non-magnetic - contact point with thread M1.7 × 0.35 mm - carbide tip with Ø 2 mm - scale from 0 - 100 or 0 - 40 - 0 Delivery: Incl. clamping shank with Ø 8 mm and union nut. 321726 MITUTOYO 513, horizontal version Measuring range × dial mm 321726 Reading Measuring forcemmN 0,4×40  0.002 ≤ 0.3 1,6×40  0.010 ≤ 0.3 www.precitool.de 32/701
