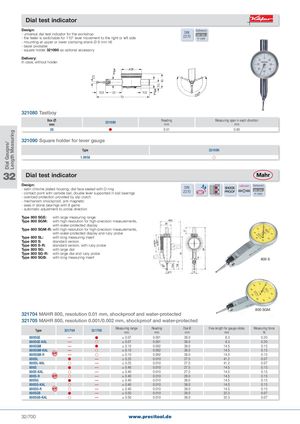

Dial Gauges/ Length Measuring Dial test indicator Design:- universal dial test indicator for the workshop DIN Delivered - the feeler is switchable for 110° lever movement to the right or left side 2270 in case - mounting at upper or lower clamping shank Ø 8 mm h6 - bezel pivotable - square holder 321090 as optional accessory Delivery: In case, without holder. 321080 Tastboy Box mm 321080 Reading Measuring span in each directionmmmm 28  0.01 0.80 321090 Square holder for lever gauge Type 321090 1.0958  32 Dial test indicator Design:- satin chrome plated housing, dial face sealed with O-ring DIN calibrated Delivered - contact point with carbide ball, double lever supported in ball bearings 2270 in case - overload protection provided by slip clutch - mechanism shockproof, anti magnetic - axes in stone bearings with 8 gems - automatic adjustment to probe direction Type 800 SGE: with large measuring range Type 800 SGM: with high resolution for high-precision measurements, with water-protected display Type 800 SGM-R: with high resolution for high-precision measurements, with water-protected display and ruby probe Type 800 SL: with long measuring insert Type 800 S: standard version Type 800 S-R: standard version, with ruby probe Type 800 SG: with large dial Type 800 SG-R: with large dial and ruby probe Type 800 SGB: with long measuring insert 800 S 800 SGM 321704 MAHR 800, resolution 0.01 mm, shockproof and water-protected 321705 MAHR 800, resolution 0.001/0.002 mm, shockproof and water-protected Type 321704 321705 Measuring rangemm Readingmm Dial Ø Free length for gauge slides Measuring forcemmmmN 800SGE —  ± 0.07 0.001 38.0  8.3 0.20 800SGE-KAL —  ± 0.07 0.001 38.0  8.3 0.20 800SGM —  ± 0.10 0.002 38.0 14.5 0.15 800SGM-KAL —  ± 0.10 0.002 38.0 14.5 0.15 800SGM-R —  ± 0.10 0.002 38.0 14.5 0.15 800SL  — ± 0.25 0.010 27.5 41.2 0.07 800SL-KAL  — ± 0.25 0.010 27.5 41.2 0.07 800S  — ± 0.40 0.010 27.5 14.5 0.15 800S-KAL  — ± 0.40 0.010 27.5 14.5 0.15 800S-R  — ± 0.40 0.010 28.0 14.5 0.15 800SG  — ± 0.40 0.010 38.0 14.5 0.15 800SG-KAL  — ± 0.40 0.010 38.0 14.5 0.15 800SG-R  — ± 0.40 0.010 38.0 14.5 0.15 800SGB  — ± 0.50 0.010 38.0 32.3 0.07 800SGB-KAL  — ± 0.50 0.010 38.0 32.3 0.07 32/700 www.precitool.de
