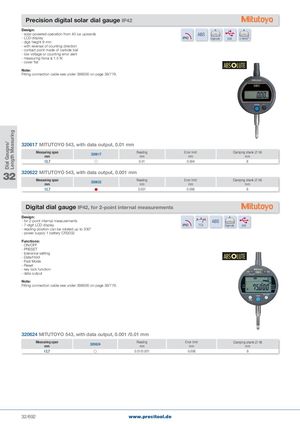

Общий каталог PRECITOOL - страница 697

Dial Gauges/ Length Measuring Precision digital solar dial gauge IP42 Design: - solar-powered operation from 40 lux upwards ABS - LCD display IP42 Digimatic USB U-WAVE® - digit height 9 mm - with reversal of counting direction - contact point made of carbide ball - low voltage or counting error alert - measuring force ≤ 1.5 N - cover flat ABSOLUTE Note: Fitting connection cable see under 398000 on page 39/779. 320617 MITUTOYO 543, with data output, 0.01 mm Measuring spanmm 320617 Readingmm Error limit Clamping shank  h6mmmm 12,7  0.01 0.004 8 32 320622 MITUTOYO 543, with data output, 0.001 mmMeasuring spanmm320622 Readingmm Error limit Clamping shank  h6mmmm 12,7  0.001 0.006 8 Digital dial gauge IP42, for 2-point internal measurements Design: - for 2-point internal measurements ABS - 7-digit LCD display IP42 TOL Digimatic USB - reading position can be rotated up to 330° - power supply 1 battery CR2032 Functions: - ON/OFF - PRESET - tolerance setting- Data/Hold ABSOLUTE - Fast Mode - Reset - key lock function - data output Note: Fitting connection cable see under 398000 on page 39/779. 320624 MITUTOYO 543, with data output, 0.001 /0.01 mm Measuring spanmm 320624 Readingmm Error limit Clamping shank  h6mmmm 12,7  0.01/0.001 0.006 8 32/692 www.precitool.de
