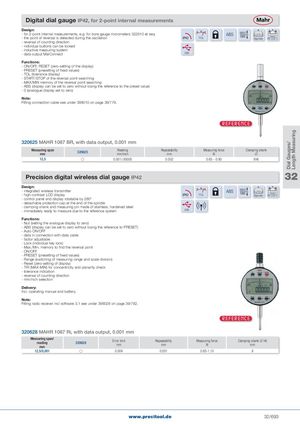

Dial Gauges/ Length Measuring Digital dial gauge IP42, for 2-point internal measurements Design: - for 2-point internal measurements, e.g. for bore gauge micrometers 322610 et seq.- the point of reversal is detected during the oscillationIP42TOLABS MAXMIN Digimatic RS 232 C - reversal of counting direction - individual buttons can be locked - inductive measuring system - data output MarConnect USB Functions: - ON/OFF, RESET (zero-setting of the display) - PRESET (presetting of fixed values) - TOL (tolerance display) - START/STOP of the reversal point searching - MAX/MIN memory of the reversal point searching - ABS (display can be set to zero without losing the reference to the preset value) - 0 (analogue display set to zero) Note: Fitting connection cable see under 398010 on page 39/779. 320625 MAHR 1087 BR, with data output, 0.001 mm Measuring spanmm 320625 Readingmm/inch Repeatability Measuring force Clamping shankmmN 12,5  0.001/.00005 0.002 0.65 - 0.90 8h6 Precision digital wireless dial gauge IP42 32 Design: - integrated wireless transmitter- high-contrast LCD display IP42 TOL ABS MAXMIN Digimatic RS 232 C - control panel and display rotatable by 280° - detachable protection cap at the end of the spindle - clamping shank and measuring pin made of stainless, hardened steel - immediately ready to measure due to the reference system USB Functions: - Null (setting the analogue display to zero) - ABS (display can be set to zero without losing the reference to PRESET) - Auto ON/OFF - data in connection with data cable - factor adjustable - Lock (individual key lock) - Max./Min. memory to find the reversal point - ON/OFF - PRESET (presetting of fixed values) - Range (switching of measuring range and scale division) - Reset (zero-setting of display) - TIR (MAX-MIN) for concentricity and planarity check - tolerance indication - reversal of counting direction - mm/inch selection Delivery: Incl. operating manual and battery. Note: Fitting radio receiver incl software 3.1 see under 398026 on page 39/782. 320628 MAHR 1087 Ri, with data output, 0.001 mm Measuring span/reading 320628mm Error limitmm Repeatability Measuring force Clamping shank  h6mmNmm 12,5/0,001  0.004 0.001 0.65-1.10 8 www.precitool.de 32/693
