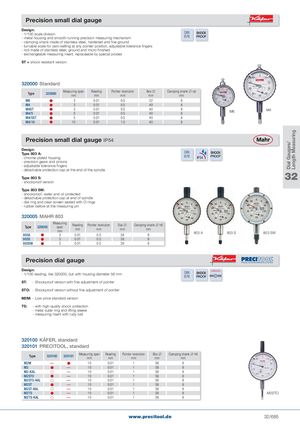

Dial Gauges/ Length Measuring Precision small dial gauge Design:- 1/100 scale division- metal housing and smooth-running precision measuring mechanism DIN878 - clamping shank made of stainless steel, hardened and fine ground - turnable scale for zero-setting at any pointer position, adjustable tolerance fingers - rod made of stainless steel, ground and micro-finished - exchangeable measuring insert, replaceable by special probes ST = shock resistant version 320000 Standard Type 320000 Measuring spanmm Readingmm Pointer revolutionmm Box  Clamping shank  h6mmmm M6   3 0.01 0.5 32 8 M4   3 0.01 0.5 40 8 M4ST   3 0.01 0.5 40 8M4/5 50.010.5408 M6 M4 M4/5ST   5 0.01 0.5 40 8 M4/10  10 0.01 1.0 40 8 Precision small dial gauge IP54 Design: Type 803 A:- chrome-plated housing DIN878 IP54 - precision gears and pinions - adjustable tolerance fingers - detachable protection cap at the end of the spindle Type 803 S: 32 - shockproof version Type 803 SW: - shockproof, water and oil protected - detachable protection cap at end of spindle - dial ring and clear screen sealed with O-rings - rubber bellow at the measuring pin 320005 MAHR 803 Type 320005 MeasuringspanmmReading Pointer revolutionmmmmDial  Clamping shank  h6mmmm803A30.010.5388 803 A 803 S 803 SW 803S  3 0.01 0.5 38 8 803SW  3 0.01 0.5 38 8 Precision dial gauge Design:- 1/100 reading, like 320000, but with housing diameter 58 mm DIN calibrated 878 ST: - Shockproof version with fine adjustment of pointer STO: - Shockproof version without fine adjustment of pointer M2M: - Low-price standard version TS: - with high-quality shock protection - metal outer ring and lifting sleeve - measuring insert with ruby ball 320100 KÄFER, standard 320101 PRECITOOL, standard Type 320100 320101 Measuring spanmm Readingmm Pointer revolutionmm Box mm Clamping shank  h6mm M2M —  10 0.01 1 58 8 M2  — 10 0.01 1 58 8 M2-KAL  — 10 0.01 1 58 8 M2STO  — 10 0.01 1 58 8 M2STO-KAL  — 10 0.01 1 58 8 M2ST  — 10 0.01 1 58 8 M2ST-KAL  — 10 0.01 1 58 8 M2TS  — 10 0.01 1 58 8 M2STO M2TS-KAL  — 10 0.01 1 58 8 www.precitool.de 32/685
