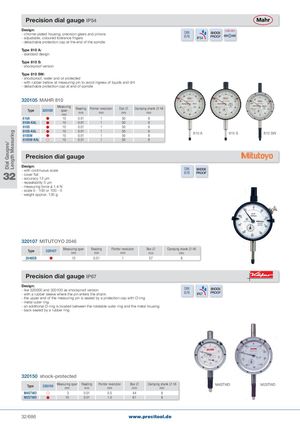

Общий каталог PRECITOOL - страница 691

Dial Gauges/ Length Measuring Precision dial gauge IP54 Design:- chrome-plated housing, precision gears and pinions DIN calibrated - adjustable, coloured tolerance fingers 878 IP54 - detachable protection cap at the end of the spindle Type 810 A: - standard design Type 810 S: - shockproof version Type 810 SW: - shockproof, water and oil protected - with rubber bellow at measuring pin to avoid ingress of liquids and dirt - detachable protection cap at end of spindle 320105 MAHR 810 Type 320105 MeasuringspanmmReading Pointer revolutionmmmmDial  Clamping shank  h6mmmm 810A  10 0.01 1 50 8 810A-KAL  10 0.01 1 50 8 810S  10 0.01 1 50 8 810S-KAL  10 0.01 1 50 8810SW100.011508 810 A 810 S 810 SW 810SW-KAL  10 0.01 1 50 8 Precision dial gauge Design: - with continuous scale32- cover flat- accuracy 13 µm DIN878 - repeatability 5 µm - measuring force ≤ 1.4 N - scale 0 - 100 or 100 - 0 - weight approx. 135 g 320107 MITUTOYO 2046 Type 320107 Measuring spanmm Readingmm Pointer revolutionmm Box  Clamping shank  h6mmmm 2046SB  10 0.01 1 57 8 Precision dial gauge IP67 Design: - like 320000 and 320100 as shockproof version- with a rubber sleeve where the pin enters the shank DIN878 IP67 - the upper end of the measuring pin is sealed by a protection cap with O-ring - metal outer ring - an additional O-ring is located between the rotatable outer ring and the metal housing - back sealed by a rubber ring 320150 shock-protected Type 320150 Measuring spanmmReadingmm Pointer revolutionmm Box mm Clamping shank  h6mm M4STWD M2STWD M4STWD   3 0.01 0.5 44 8 M2STWD  10 0.01 1.0 61 8 32/686 www.precitool.de
